5V 60 LEDs/m LPD8806 pixel LED strip
5V 60 LEDs/m LPD8806 pixel LED strip
Product Description:

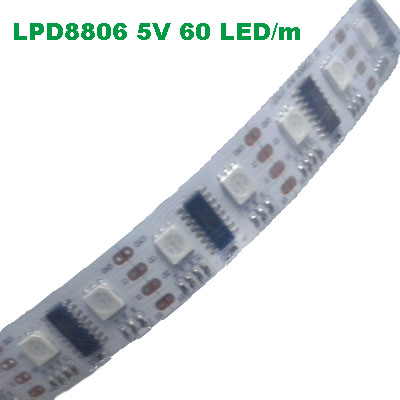

 LPD8806 60 LEDs/m strip lights
Mode: BW5050RGB60T-8806

Parameter:
1. DC5v, 18w/m

2. 60 LEDs/m, 60 pixels/m

3. 30pcs LPD8806 IC, 1 IC drives 2 LEDs as 1 segment

4. LPD8806 IC, grey scale= 256/color, 24 bits for RGB

5. SMD5050 RGB, Epistars chips

6. 4-PIN connectors on both ends

7. DC5V, CLK, Data, GND.

IP rating Protection Outer Size Installation Mode
IP40 None L5000*W15 Double side tape BW5050RGB60T-8806
IP65 Glue coating L5000*W15 Double side tape DW5050RGB60T-8806
IP67 Silicone tube L5000*W17 screw + buckle TW5050RGB60T-8806
IP68 Tube +glue filled L5000*W17 screw + buckle JW5050RGB60T-8806


This LPD8806 strips including 60 LEDs/m, 5meters/roll, each LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.
