2.4G Wireless DMX512 Transmitter&receiver 7 ID
2.4G Wireless DMX512 Transmitter&receiver 7 ID
Product Description:

2.4G DMX 512 DJ Wireless Receivers and Transmitters for Lighting Control

Overview:
Wireless DMX512 Transceiver & receiver, DMX512 console data to LED lamps and other lighting device, can also be transmitted on-line data, the product is completely solved the wireless transmission of data between the DMX console and lamps, say goodbye to the long and heavy cables!

Data transmission process to be done without delay, real-time data and reliable! The product uses 2.4G global open ISM band, license-exempt use. Efficient GFSK modulation, 126 channel automatic frequency hopping communication design, strong anti-interference ability.


Application:
Widely used for stage lighting, moving stage, conference center,theater,bar,etc.


Features and Benefits:

1. Standard DMX512 three core XLR

2. Transmission without delay and no packet loss

3. Transceiver, auto-switching

4. Three-color LED display working status and parameters, one-touch operation

5. 126 band Automatic frequency hopping, and automatically selects the band without interference, to ensure the reliability of communication

6. 7 groups of ID code are available, the user can build up to 7 separate wireless network in one place.
16 ID version: http://www.pixel-leds.com/products/108-16-ID-wireless-2.4G-DMX512-transmitter-receiver.html


Parameter
1. Input DC5v, 500mA * DC5V

2. Working Temp.:-40~85

3. Size: 120 x 30 x 30 mm (Ant included)

4. Weight: 100g/pcs

5. Connector: 3-pin XLR

6. CPU: 32 bit - ARM

7. Control distance: about 600 meters

8. Working frequency: 2.400 - 2.4835GHz, ISM, 126

9. MSTXPWR: 23dBm

10. ID code: 7

Correspondence between the ID code and the LED color:
1---------------RED
2---------------GREEN
3---------------YELLOW
4---------------BLUE
5---------------PURPLE
6---------------BLUE-GREEN
7---------------WHITE


Operating Instructions:
1. Click the button to display the current ID is set, and then the ID settings, click the ID value plus 1

2. Work Status:
        LED light: no DMX or wireless signal
        Red LED flashing: Send
        Green LED flashing: Receiver

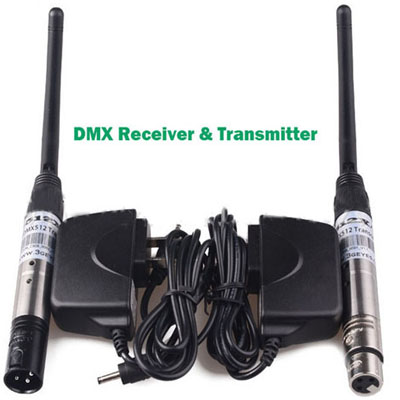

A package including:
1 * DMX wireless transimitter
1 * DMX wireless receiver
2 * DC5V adaptor


Advantages show in Video:
