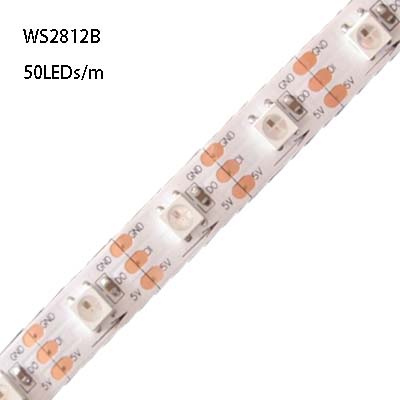

5v 50 LEDs/m ws2812b smart LED strip
Product Description:
DC5v 50 pixels/m ws2812b smart LED strip
Overview:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but the IC is built into the 5050 lamp. It is space and cost saving, widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v, Max 15 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 50 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. Cables out: DC5V, DATA, GND
Protection and mode:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but the IC is built into the 5050 lamp. It is space and cost saving, widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v, Max 15 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 50 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. Cables out: DC5V, DATA, GND
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W10 | Double side tape | BW5050RGB50T-2812 |
| IP65 | Glue coating | L5000*W10 | Double side tape | DW5050RGB50T-2812 |
| IP67 | Silicone tube | L5000*W11 | screw + buckle | TW5050RGB50T-2812 |
| IP68 | Tube +glue filled | L5000*W11 | screw + buckle | JW5050RGB50T-2812 |
