12v 60leds/m ws2811 dream color LED strip
12v 60leds/m ws2811 dream color LED strip
Product Description:

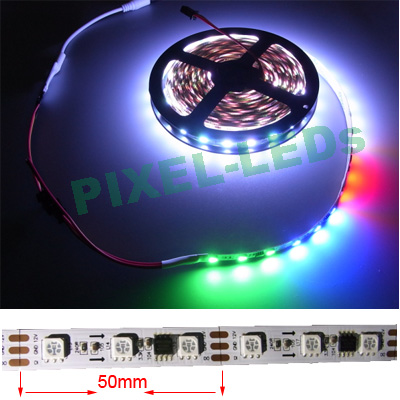

12v 60leds/m ws2811 dream color LED strip
Mode: BW5050RGB60T-2811-12V

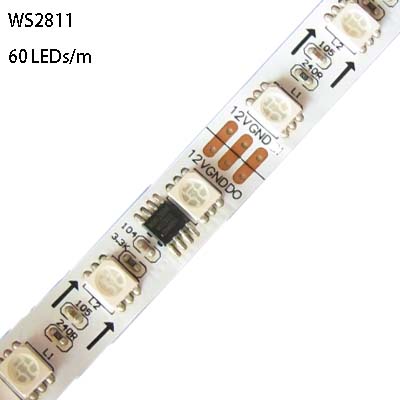

This is the highest LED density ws2811 LED strip, 60 LEDs drove by 20pcs IC chip, each 3 LEDs as a separately segment/pixel.


Parameter

1. Input DC12v, 14.4 watts/m

2. 60 LEDs/m, SMD5050 RGB

3. Drive IC ws2811, grey scale=256/color, 24 btis for RGB

4. 20 segments/pixels in one meter, each segment can be controlled individually


5. FPC width= 10mm, 3M tape backing

6. Wire out: DC12v, DATA, GND

7. TTL/SPT protocol

8. Black or white PCB.

Protection and mode:

IP rating Protection Outer Size Installation Mode
IP40 None L5000*W10 Double side tape BW5050RGB60T-2811-12v
IP65 Glue coating L5000*W10 Double side tape DW5050RGB60T-2811-12v
IP67 Silicone tube L5000*W11 screw + buckle TW5050RGB60T-2811-12v
IP68 Tube+glue filled L5000*W11 screw + buckle JW5050RGB60T-2811-12v


It can be controlled by DMX controller and SPI controller.
