12v 30 LEDs 10 pixels ws2811
12v 30 LEDs 10 pixels ws2811
Product Description:

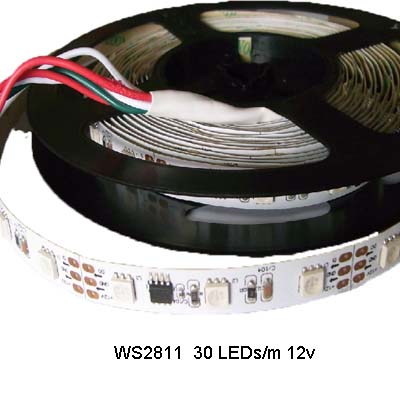

 12v 60leds/m ws2811 dream color programmable RGB LED strip

There are 30pcs of SMD5050 RGB in one meter, each 3 LEDs as a separately segment/pixel, and each group of 3 LEDs can be cut off.


1. Input DC12v, 7.2 watts/m

2. 30 LEDs/m, SMD5050 RGB

3. Drive IC ws2811, grey scale=256/color, 24 btis for RGB

4. 10 segments/pixel in one meter, each segment can be controlled individually

5. FPC width= 10mm, 3M tape backing

6. Wire out: DC12vDATA, GND

7. TTL/SPT protocol.

Protection and mode:

IP rating Protection Outer Size Installation Mode
IP40 None L5000*W10 Double side tape BW5050RGB30T-2811-12v
IP65 Glue coating L5000*W10 Double side tape DW5050RGB30T-2811-12v
IP67 Silicone tube L5000*W11 screw + buckle TW5050RGB30T-2811-12v
IP68 Tube+glue filled L5000*W11 screw + buckle JW5050RGB30T-2811-12v

It can be controlled by DMX controller(need a decoder:http://www.pixel-leds.com/e_products_show/?id=70) and SPI controller.
