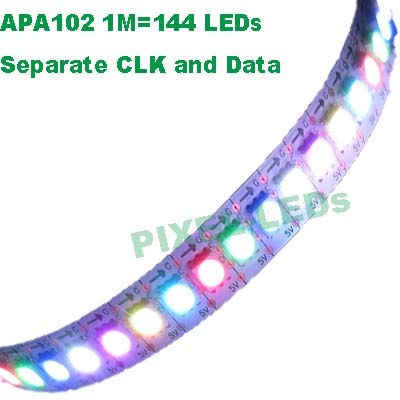

DC5v 144 LEDs APA102 LED strip

Product Description:

DC5v 144 LEDs APA102 LED strip

Mode: BW5050RGB144T-APA

Overview
This is a new intelligent pixel LED strips, similar packaging with WS2812/WS2812B, but more powerfull--it has separate signal wires CLK and DATA. It is easier to control and coding.

Parameter:

1. Working Volt.: DC5v, MAX 43w/meter

2. 144 LEDs/m, 1 LED=1 pixel

3. SMD5050 RGB, Epistar chips

4. APA102 IC, built into the 5050 lamp

5. FPCB wdith= 12mm

6. wires out:
  DC5v
  CLK
    DATA
GND

Protection and mode:

IP rating	Protection	Outer Size	Installation	Mode
IP40	None	L5000*W10	Double side tape	BW5050RGB144T-APA
IP65	Glue coating	L5000*W10	Double side tape	DW5050RGB144T-APA
IP67	Silicone tube	L5000*W11	screw + buckle	TW5050RGB144T-APA
IP68	Tube +glue filled	L5000*W11	screw + buckle	ZW5050RGB144T-APA

Specification: http://www.pixel-leds.com/pdf/2014-7-14-7-43-59.pdf
