DC24v diameter 100mm 12pcs 5050 RGB ws2811 pixel LED dot light
Product Description:
DC24v diameter 100mm 12pcs 5050 RGB ws2811 pixel LED dot light
Mode: D10012T-ws2811-24V

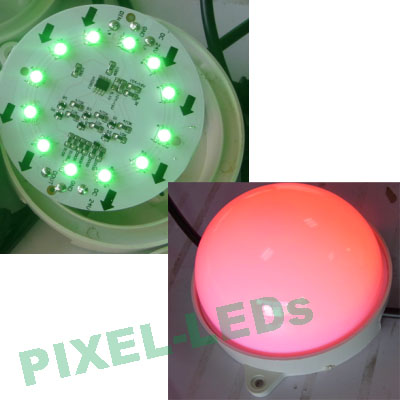

PVC milky housing ws2811 pixel dot light, 1pcs of ws2811 IC drives 12 LEDs SMD5050 RGB, Cree chips, and each module can be controlled individually, it is easy to screw onto the surface.
Parameter
1. Input Voltage: DC24v, MAX 2.88 watts/pcs
2. Driver IC: ws2811 / SPI protocol
3. Greyscale: 256/color, 24 bits for RGB
4. 12pcs of SMD5050 RGB, Cree chips
5. Size: Diameter= 100mm
6. DATA, VCC+, GND
7. Waterproof connectors at both ends.
It can be controlled by SPI controller and DMX512 controller.
Parameter
1. Input Voltage: DC24v, MAX 2.88 watts/pcs
2. Driver IC: ws2811 / SPI protocol
3. Greyscale: 256/color, 24 bits for RGB
4. 12pcs of SMD5050 RGB, Cree chips
5. Size: Diameter= 100mm
6. DATA, VCC+, GND
7. Waterproof connectors at both ends.
It can be controlled by SPI controller and DMX512 controller.
