4CH*6A RF RGBW LED controller
Product Description:
4CH*6A RF RGBW LED controller
C-RF-RGBW-1
Overview: This is a 4 channels RGBW PWM LED controller, special desined for RGBW LED strip lights. Working with 2.4G wireless remote touch panel, makes it more powerful.
Controllability. (Take the RGBW SMD5050 60 LEDs/Meter as sample)
It can control MAX 20 meters of RGBW 60 LEDs strips, you need a amplifier if the length over 20 meters, such as 30m.
Link of amplifier: http://www.pixel-leds.com/products/156-RGBW-LED-amplifier.html
Link of RGBW LED strip: http://www.pixel-leds.com/products/100-12v-24v-RGBW-5050-LED-strip.html
Parameter of Controller
1). Input voltage: DC12v-24v
2). Output current: 4 × 6A
3). Output 4 channels: R, G, B, W
4). Programs: about 20
5). Size= L107*W65*H30MM
6). Size: 85 × 45 × 23mm

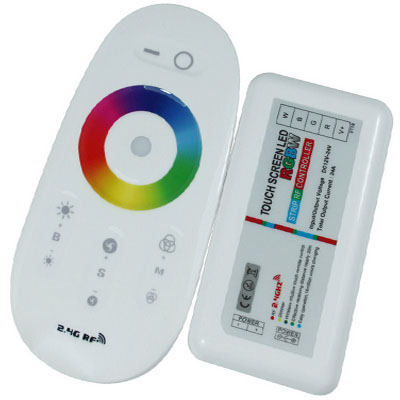

Parameter of remote panel
1). working Tem.: -20-60
2) Battery: AAA × 2
3) Size: 110 × 50 × 20mm
4) Remote distance: MAX 30 meters
Notice
It support one to one lock(unlock) function:
Lock: Please press key '5' one time after all device power on. If LED strip flash 2 times, then done.
Unlock: Please press key '5' for 3 seconds after all device power on. If LED strip flash 9 times,then done.
