6144 pixels SD card programmable IR controller
6144 pixels SD card programmable IR controller
Product Description:

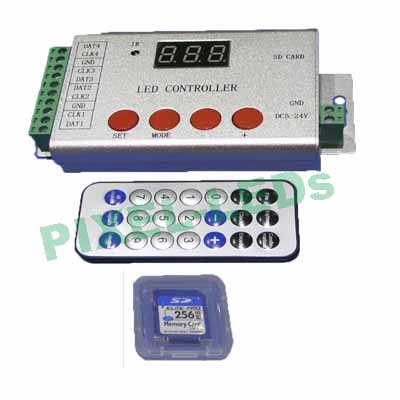

 6144 pixels remote IR SD card programmable LED controller
Mode: H802SE

This is a SD card off-line programmable LED controller, it can control MAX 6144(4×1536) pixels, and support almost all kinds of IC, such as ws2801, lpd8806, ws2811, ws2812, ws2812b, ucs1903, TM1803, tm1809, DMX512, etc.

It works with programs which stored in the SD card, and programms can be made via computer by software of ledBuild. MAX 64 programs are allowed to store in one SD card.

There is a matched IR remote panel, you can choose programs very quickly via this panel.


1. Input DC5v-24v

2. Modes, speed and clock frequency are adjustable

3. Size: L132 × W71 × H24mm

4. MAX support 64 programs in a SD card

5. Load capacity: MAX 4 × 1536 pixels

6. Clock frequency: 0.1--2.5MHz

7. The remote panel don't have function of ON/OFF

8. SD card= 256M

Software download: https://app.box.com/s/0k33dnv3bhn00co3uadi  (http://www.pixel-leds.com/down/  select L10)

Specification download: https://app.box.com/s/oq78su13ojgxsb2m042f
