D30 DMX512 parallel signal pixel module

30mm DMX512 parallel signal pixel LED modules

Product Description:

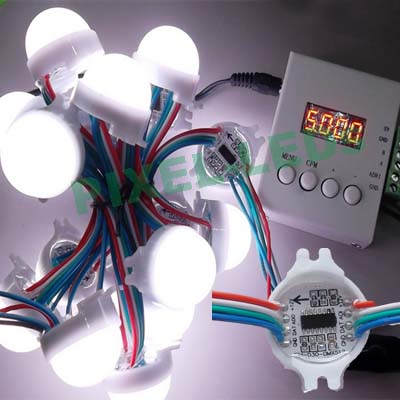

D30 DMX512 parallel signal pixel LED modules

Mode: D30S5050RGB3T-DMX-12V

Overview:
This is a DMX512/1990 protocol pixel RGB modules, with parallel signal design makes each modules work completely separately, that means one broken LED module will not afftect the other LED modules to work fine.

Parameter

1. Input DC12v, 0.72watts/pcs

2. 1pcs module is drove by 1pcs DMS512 IC

3. 3 × SMD5050 RGB per module, Epistar chips

4. 20pcs/string, wire length = 10cm

5. PCB size: Diameter=30mm

6. D3.5mm hole for installation

7. Epoxy coating as waterproof

8. 3 signal wires:
  Data
GND
ADR ( For DMX Address setting)

2 power wires:
  DC12v
GND

DMX Address writer: http://www.pixel-leds.com/products/115-.html

DMX LED controller: http://www.pixel-leds.com/lists/19-87-SD-card-Controller.html
