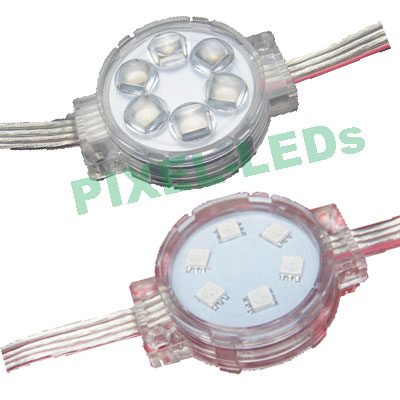

D42 DMX512 DC24V Pixel RGB module lights
D42 DMX512 DC24V Pixel RGB module lights
Product Description:


 24v D42 6 LEDs DMX parallel addressable RGB pixel modules
Mode: D42S5050RGB6T-DMX
Overview
Usually, digital LED modle data transmission in cascading, like ws2801, ws2811 and ws2812b, the fatal is that: a damaged IC will cause the whole following IC fail to work!! Sometimes thousands of LED failed just because of one broken IC. Now this parallel data transmission digital LED strip will be a good solution. All IC chips work separately, more stable and reliable!  one broken≠ all broken.

DMX512 addressable pixel LED Modules, drove by DMX512 IC, can be controlled by Madrix, sunlite, freestyler. Each piece of module takes 3 DMX channels, and individually controllable. You can set the DMX address at your request.


Protocol:
Both RS485: A/B/GND/24v and TTL: 24V/GND/Data.


Parameter

1. Input DC24, 1.5 watts/pcs;

2. IC chip: DMX512, 3 channels/module, 170 modules per universe;

3. 6 × SMD5050 RGB. Epistar chips

4. Housing size: D42 * H35mm

5. Housing color: Transparent & Milky

6. Cables out: A, B, GND, DC24V OR DC24V/GND/Data

7. Packaging: 20pcs/string or at your request.


Advantages:

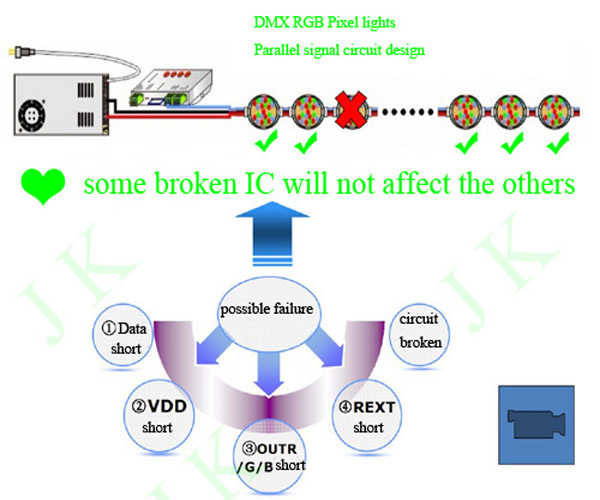

1. Parallel signal circuit, all LED works completely separately. (one broken IC (LED) will not impact others)

2. Support DMX512/1990 protocol. (A, B, GND)

3. DMX address can be reset by address writer.


How to use

You need to set the DMX address by the address setter before using, then add a tracking PCB before connect to the DMX controller. Like this

DMX512 controller →→ tracking FCB →→ DMX pixel module lights
