DC5V 32 LED ws2812b LED streifen
DC5V 32 LED ws2812b LED streifen
Product Description:

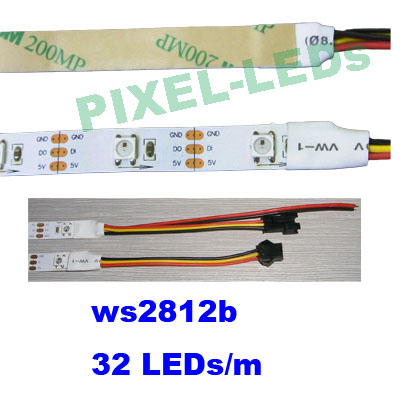

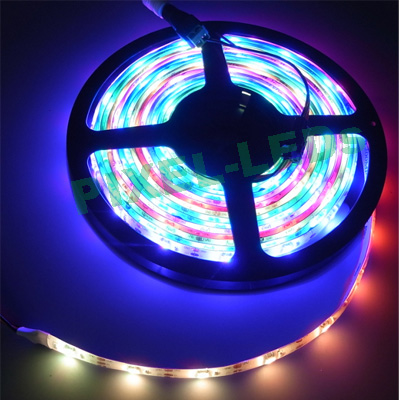

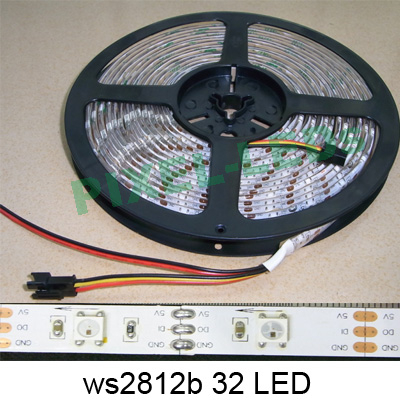

DC5V 32 LED ws2812b LED streifen
Mode: BW5050RGB32T-2812B-5V


Neon pixel ws2812b is the inbuilt IC of ws2811 with 4 pin only, it has the same datasheet with ws2811. Integrated driver, 24-bit color, 800Kbps, can be divided at every pixel(LED).


1. Input DC5v, Max 10 watts/meter

2. ws2812b IC, 1 LED = 1 pixels

3. 32 LEDs/m, SMD5050 RGB

4. Greyscale=256/color, 24 bits for RGB

5. Both WHITE and Black FPC are optional

6. 5meters/roll

7. cables: DC5V, DATA, GND

Protection and mode:

IP rating Protection Outer Size Installation Mode
IP40 None L5000*W10 Double side tape BW5050RGB32T-2812b
IP65 Glue coating L5000*W10 Double side tape DW5050RGB32T-2812b
IP67 Silicone tube L5000*W11 screw + buckle TW5050RGB32T-2812b
IP68 Tube +glue filled L5000*W11 screw + buckle JW5050RGB32T-2812b
How to place an order

1) Send me an inquiry with quantity / IP rating;

2) We make proforma invoice for you including shipping cost;

3) Checking and corfirm the invoice;

4) Pay via PayPal or T/T;

5) Arrange the production and provide tracking code.
