C9 G40 ws2801 strawberry Christmas pixel string
C9 G40 ws2801 strawberry Christmas pixel string
Product Description:


ws2801 C9/G40 strawberry Christmas pixel string
Mode: S68-C9-ws2801-5V/12v
S68-G40-ws2801-5v/12v

Overview

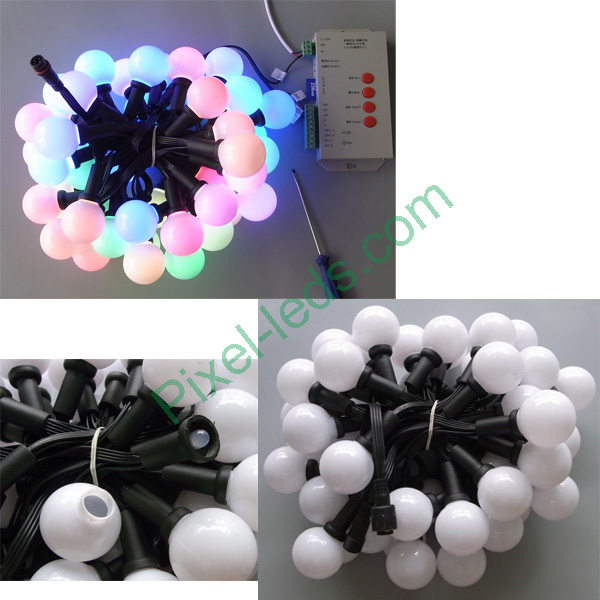

Round base addressable RGB Pixel Christmas string lights with C9 / G40 cover, 1 IC chip(ws2801) drives 1pcs F8 RGB LED, each LED are individually controllable. Full color changing for holiday decoration.



Parameter

1. Input DC5v or 12V

2. Power consumption: 5v = 0.3w/pcs


3. Drive IC: ws2801 / LPD6803

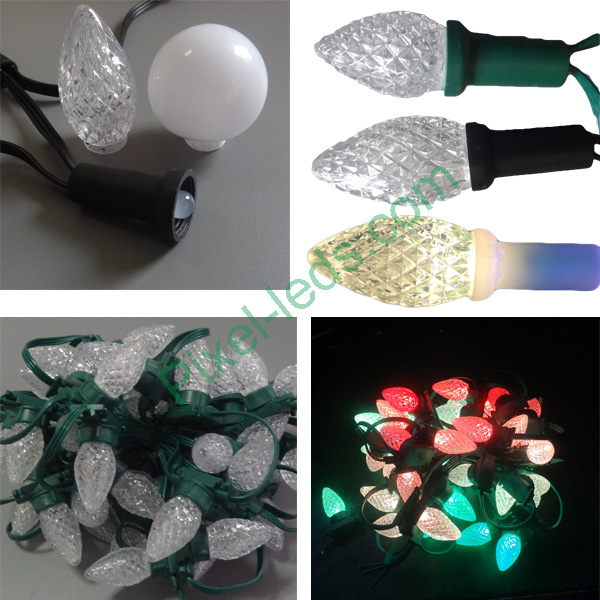

4. C9 OR G40 cover in milky or crystal, cover can be removed

5. wire color: white / black / green

6. wire length: 120mm (center to center)   #20AWG

7. Waterproof connectors: male + femae

8. Greyscale: 256/color, 24-bit for RGB

9. Wires out: DATA, CKL, GND, Vcc+

10. Packaging: 50pcs/string


Application

1. Holiday decoration

2. Party decoration
