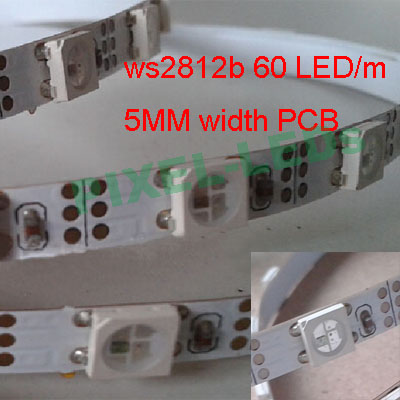

Narrow FPCB 5mm ws2812b 60 pixel LED strip
Product Description:
DC 5v 60 pixels/m ws2812 LED strip lights
Mode: BW5050RGB60T-2812B-5MM
Mode: BW5050RGB60T-2812B-5MM
Overview:
ws2812 is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit. It is space and cost saving, widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v, Max 18 watts/meter;
2. ws2812 IC, 1 LED = 1 pixels;
3. 60 LEDs/m, SMD5050 RGB;
4. Greyscale=256/color, 24 bits for RGB;
5. Both WHITE and Black FPC are optional;
6. 5meters/roll;
7. cables: DC5V, DATA, GND;
8. FPCB width: 5MM.
Notice:
1. Length: Due to the narrow PCB, we suggest MAX 2 meters/roll;
2. Protection. Only IP40 non-waterproof are avilable.
