ws2812b ws2811 5v pixel RGB heatsink dot
Product Description:
ws2812b ws2811 5v pixel RGB heatsink dot
Mode: D10-WS2812B-5V
Mode: D10-WS2812B-5V
Overview:
Some clients only need separately ws2812b with heatsink for software developing and special DIY projects, here comes a new mini size pixel dot light.
Parameter
1. Working vol.: DC5V, 0.3watt/pcs;
2. Size: diameter= 9.6MM, round shape;
3. 1pcs of ws2812b 5050 for each dot;

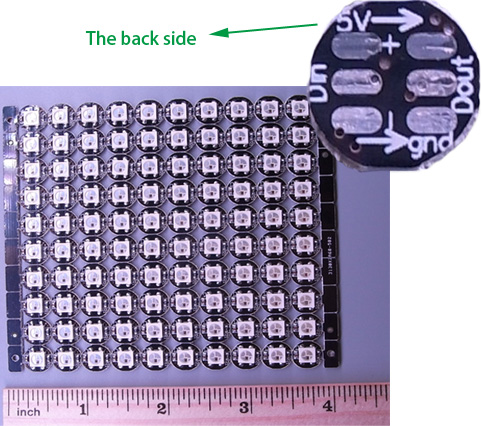

4. soldering/ bonding pad placed on the back PCB;

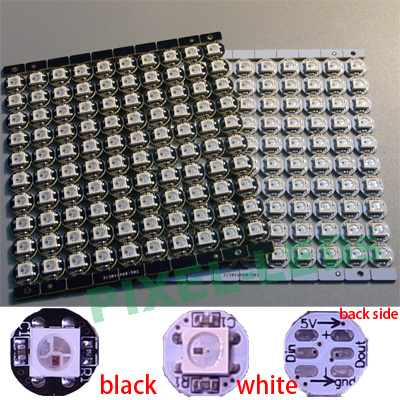

5. white and black PCB are optional;
6. 100pcs per sheet.
