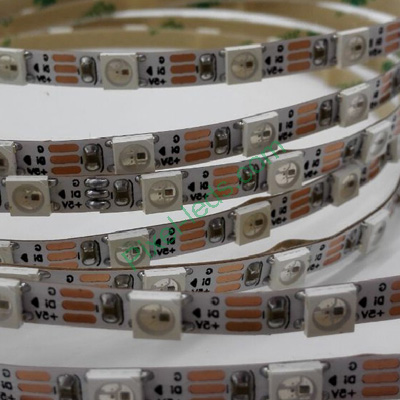

5mm 5v 60 LED SK6812 RGB pixels LED strip
5mm 5v 60 LED SK6812 RGB pixels LED strip
Product Description:

 5mm 5v 60 LED SK6812 RGB pixels LED strip
Mode: BW5050RGB60T-6812-5MM
SK6812 is a SPI protocol based smart integrated IC chip set,  the similar packaging with ws2812b --- IC built into the 5050 lamp. It also has the very similar data sheet with ws2812b.

This is a special pixel LED strips with narrow PCB width only 5mm, very suitable for narrow / thin place lighting and decoration.

1. DC5v, 14.4watts / meter

2. Inbulit IC SK6812, 24-bit for RGB

3. SPI protocol running

4. 60 LED / pixels per meter, PCB width = 5MM

5. Each LED can be cut off

6. Suggest length: 2 meters/pcs

7. 3 wires in/out: DC5v / Data / GND

Protection and mode:
IP rating Protection Outer Size Installation Mode
IP40 None L2000*W5 Double side tape BW5050RGB60T-6812-5mm
IP65 Glue coating L2000*W5 Double side tape DW5050RGB60T-6812-5mm
IP67 Silicone tube L2000*W6 screw + buckle TW5050RGB60T-6812-5mm
IP68 Tube +glue filled L2000*W7 screw + buckle ZW5050RGB60T-6812-5mm
