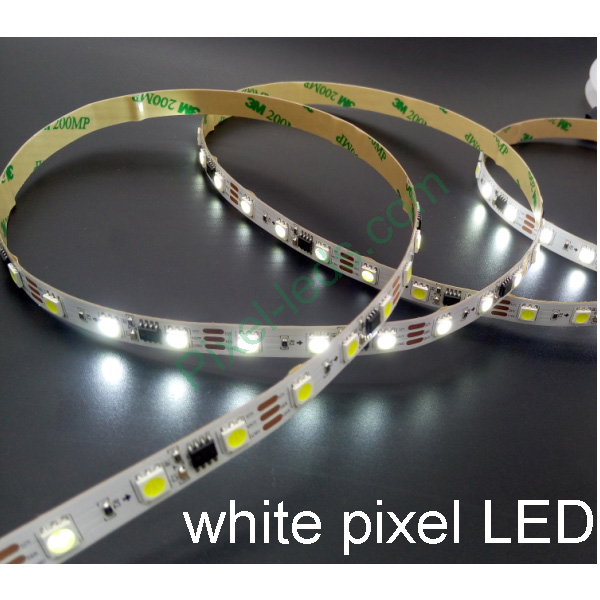

12v SM16703 cold/warm white pixel 60 LED strip
Product Description:
DC12v SM16703 cold/warm white pixel 60 LED strip
Model: BW5050W60T-16703-12V
Overview:

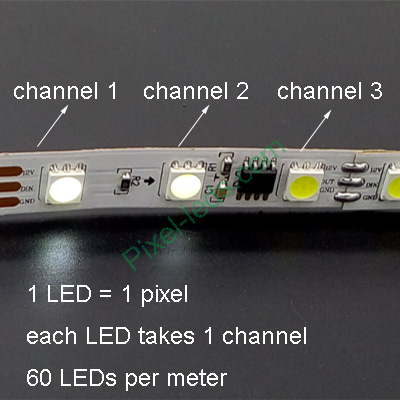

60 LED/m, 60 pixels/m, warm white & cold white pixel LED strip lights. Each LED takes 1 channel from IC chipset, and each LED can be controlled individually, total 60 pixels in one meter.
Advantages:
1. High brightness, DC12V SMD5050, white or warm white
2. DC12v driving, lower voltage and higher brightness
3. Channel saving design for DMX control
Parameter
1. Input DC12v, Max 14.4 watts/meter
2. SM16703 IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 white
** warm white: 3500K
** cold white: 6500K
4. Greyscale=256/LED
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. cables: DC12V, DATA, GND
8. SPI protocol. Can be controlled by DMX512 via a decoder --- 8.5 meters/universe
Protection and mode:
60 LED/m, 60 pixels/m, warm white & cold white pixel LED strip lights. Each LED takes 1 channel from IC chipset, and each LED can be controlled individually, total 60 pixels in one meter.
Advantages:
1. High brightness, DC12V SMD5050, white or warm white
2. DC12v driving, lower voltage and higher brightness
3. Channel saving design for DMX control
Parameter
1. Input DC12v, Max 14.4 watts/meter
2. SM16703 IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 white
** warm white: 3500K
** cold white: 6500K
4. Greyscale=256/LED
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. cables: DC12V, DATA, GND
8. SPI protocol. Can be controlled by DMX512 via a decoder --- 8.5 meters/universe
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W10 | Double side tape | BW5050RGB60T-16703 |
| IP65 | Glue coating | L5000*W10 | Double side tape | DW5050RGB60T-16703 |
| IP67 | Silicone tube | L5000*W12 | screw + buckle | TW5050RGB60T-16703 |
| IP68 | Tube +glue filled | L5000*W12 | screw + buckle | ZW5050RGB60T-16703 |
