Artnet-SPI converter MADRIX/Freestyler
Product Description:
Artnet-SPI converter MADRIX/Freestyler

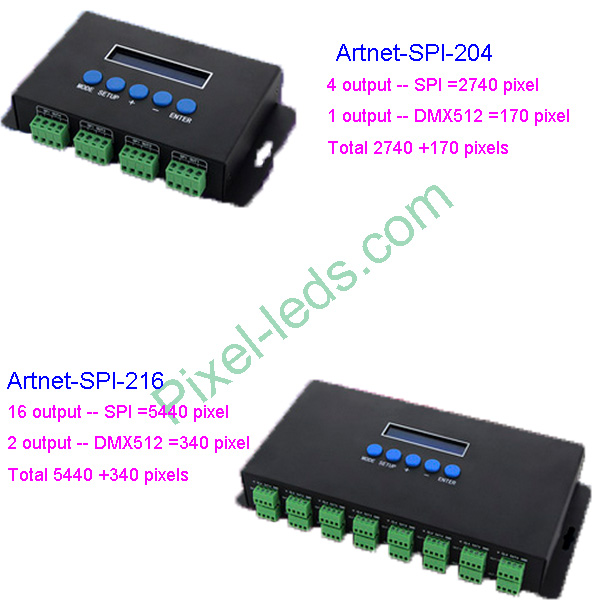

Artnet-SPI-204
Artnet-SPI-216
Artnet-SPI-204
Artnet-SPI-216

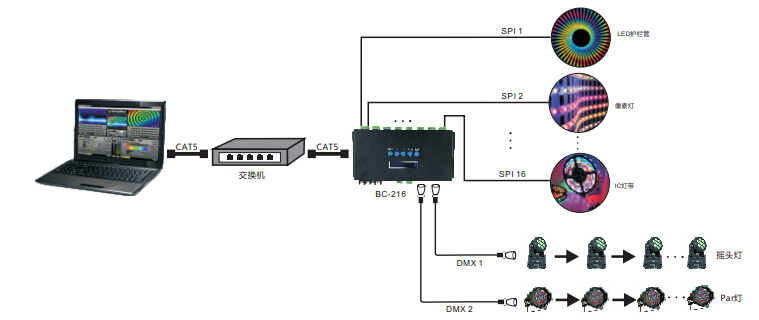

Artnet-SPI converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into SPI(TTL) digital signal, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and green terminal output interface.
Artnet-SPI-1 can control LED lighting with compatible driving IC, such as ws2811 / ws2812b, ws2801, LPD6803, LPD8806, TLS3001, 9813.
It is compatible with all the effects lighting control software which support Artnet protocol, such as Madrix and Freestyler, widely used in the LED dot matrix and the stage lighting.
Features
1. Based on Artnet protocol network data communication
2. output 16 sets SPI and 2 set DMX512 (4 set SPI and 1 set DMX512 for Artnet-SPI-204.)
3. Compatible with the light software based on Artnet Protocol, control LED lighting.
Parameter:
Features
1. Based on Artnet protocol network data communication
2. output 16 sets SPI and 2 set DMX512 (4 set SPI and 1 set DMX512 for Artnet-SPI-204.)
3. Compatible with the light software based on Artnet Protocol, control LED lighting.
Parameter:
|
Mode |
Artnet-SPI-204 |
Artnet-SPI-216 |
|
Working voltage |
DC5-24V |
DC5-24V |
|
Output current |
7A × 4 锛7.5A fuse锛 |
3A ×16 锛5A fuse锛 |
|
Input signal |
Artnet |
|
|
Output signal |
ws2811/ws2812b, ws2801, LPD6803, LPD8806, TLS3001, P9813 |
|
|
SPI Pixels load |
4 ports × 680 |
16 ports × 340 |
|
DMX512 universe |
1 universe × 170 |
2 universe × 170 |
|
Universe listed |
Max 17 universe |
MAX 33 universe |
|
Working Temp |
-20 ~ +55 |
-20 ~ +55 |
|
Size |
L166 * W110 * H31MM |
L258 * W145 * H41MM |
