sound interactive music spectrum LED display panel
sound interactive music spectrum LED display panel
Product Description:


sound interactive music spectrum LED display panel

Overview:

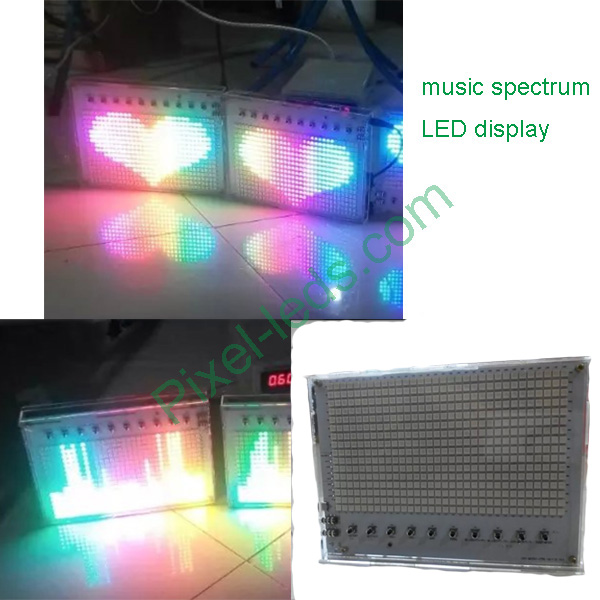

This is a full color changing LED panel to show music spectrum via a 3.5 audio interface plug, there are total 33 kinds of pattern and 231 colors available.

Inbuilt micro-controller, no need extra working, just PLUG and PLAY!!



Parameter:



1.   Input voltage: DC5V(USB Mini Micro), DC7-24V (DC2.1

2.   Current: < 500 mA support PC USB

3.   Temp: -20——60

4.   Outer Size: L220 * W160 * H30 mm

5.   LED panel size: L190 * W110 MM

6.   LED panel: P6 full color,  32 * 16 LED (total 512 pixels)

7.   Weight: 0.35KG

8.   Patterns: 33, such as heart-shape, line jumping, etc.





Sound input: 2 way input

1.      3.5MM audio interface AUX

2.      inbuilt MIC



Spectral range: 40HZ——15.75KHZ
