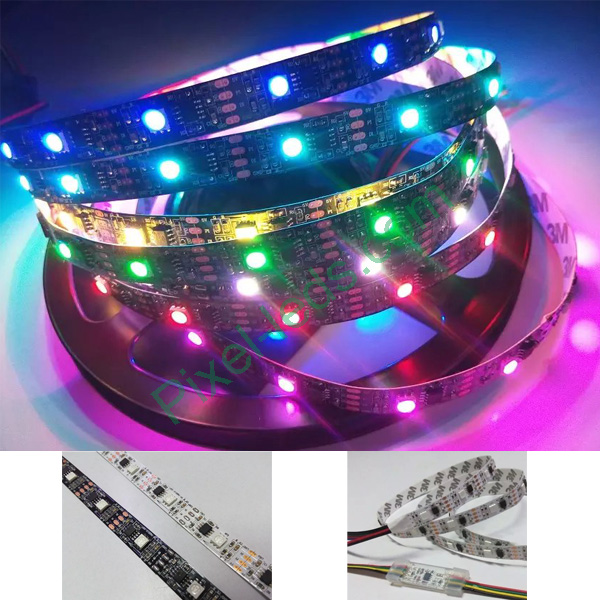

UCS512 addressable pixel 32 LED/m RGB stripe
Product Description:
DC5v DMX512/UCS512 addressable pixel 32 LED/m RGB stripe
Mode: BB5050RGB32T-ucs-5V
Overview:
DMX512/1990 protocol addressable RGB LED strips, special design for DMX512 control system, 32 individually pixel per meter and 96 channels per meter, about 5.3 meters per universe.
Features
1. Parallel signal running, more reliable: one broken IC/LED will not cause the following IC cascading failure
2. DMX address can be reset easily
3. Support standard DMX512 interface
Parameter:
1. DC5v, MAX 10 watts/meter
2. 32 LEDs/m, 32 pixels/meter
3. 1 LEDs as 1 segment can be cut off
4. 96 DMX channels per meter, 1 universe/512CH can drive MAX 5.3 meters
5. SMD5050 RGB, Epistars chips
6. Signal input: TTL & RS485
7. Packaging: 5 meter/roll
8. white or black PCB
Advantages:
1. DMX address increase automaticly;
2. Each LED is individually controllable;
3. It is controllable with MADRIX / freestyle.
2. 32 LEDs/m, 32 pixels/meter
3. 1 LEDs as 1 segment can be cut off
4. 96 DMX channels per meter, 1 universe/512CH can drive MAX 5.3 meters
5. SMD5050 RGB, Epistars chips
6. Signal input: TTL & RS485
7. Packaging: 5 meter/roll
8. white or black PCB
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BB5050RGB32T-ucs-5V |
| IP65 | Glue coating | L5000*W12 | Double side tape | DB5050RGB32T-ucs-5V |
| IP67 | Silicone tube | L5000*W13 | screw + buckle | TB5050RGB32T-ucs-5V |
| IP68 | Tube +glue filled | L5000*W13 | screw + buckle | JB5050RGB32T-ucs-5V |
Advantages:
1. DMX address increase automaticly;
2. Each LED is individually controllable;
3. It is controllable with MADRIX / freestyle.
