DMX512 RS485 TO TTL converter PCB
DMX512 RS485 TO TTL converter PCB
Product Description:

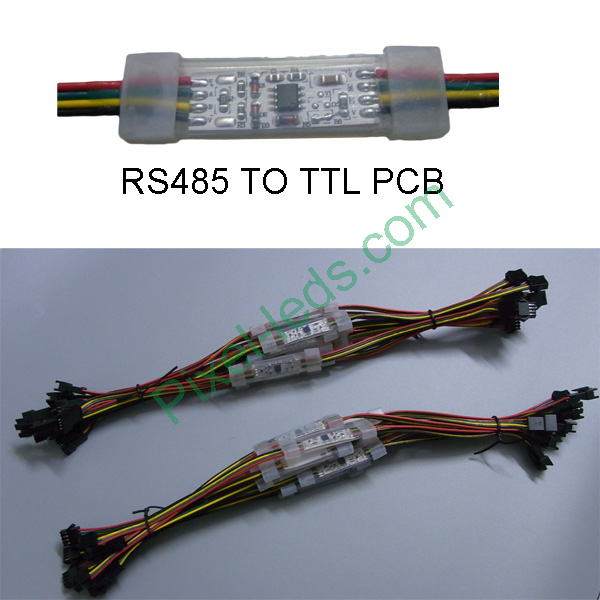

 DMX512 RS485 TO TTL converter PCB


This PCB used to build a stardard DMX512 interfece for DMX512 Pixel LED strip/Module. And this is NOT a DMX512-SPI decoder.



Parameter

1. Input RS485 signal: A / B / GND /VCC

2. Output TTL signal(DMX512): VCC / Data / GND

3. Input voltage: DC5-12v

4. PCB width: 12MM


How to operate?

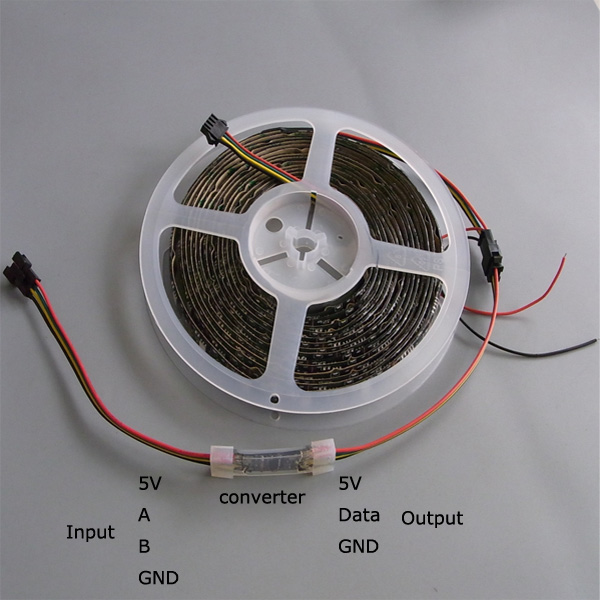

Adding the PCB at the input end of DMX512 LED strip,  then connect the PCB to DMX512 interface, like this:
