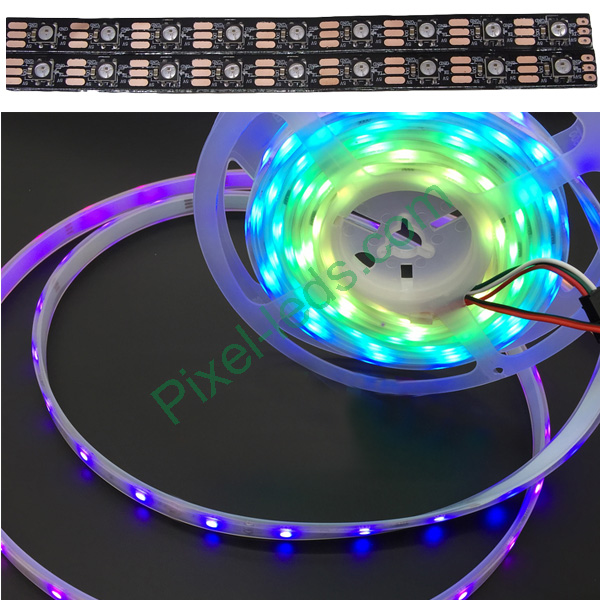

Black inbuilt lamp SK6812 Pixel RGB 60 LED strip
Product Description:
Black inbuilt lamp SK6812 Pixel RGB 60 LED strip
BB5050RGB60T-6812-5V
Overview:
SK6812 is the inbuild 5050 IC chepset, it has the similar datasheet with ws2812b, but lower voltage.
Parameter
1. Input DC5v, Max 18 watts/meter
2. sk6812 IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. FPCB width =10mm
7. 5meters/roll
8. cables: DC5V, DATA, GND
Protection and mode:
SK6812 is the inbuild 5050 IC chepset, it has the similar datasheet with ws2812b, but lower voltage.
Parameter
1. Input DC5v, Max 18 watts/meter
2. sk6812 IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. FPCB width =10mm
7. 5meters/roll
8. cables: DC5V, DATA, GND
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB60T-6812-5v |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB60T-6812-5v |
| IP67 | Silicone tube | L5000*W13 | screw + buckle | TW5050RGB60T-6812-5v |
| IP68 | Tube +glue filled | L5000*W13 | screw + buckle | JW5050RGB60T-6812-5v |
