72 pixels white APA102c digital led strip

Product Description:

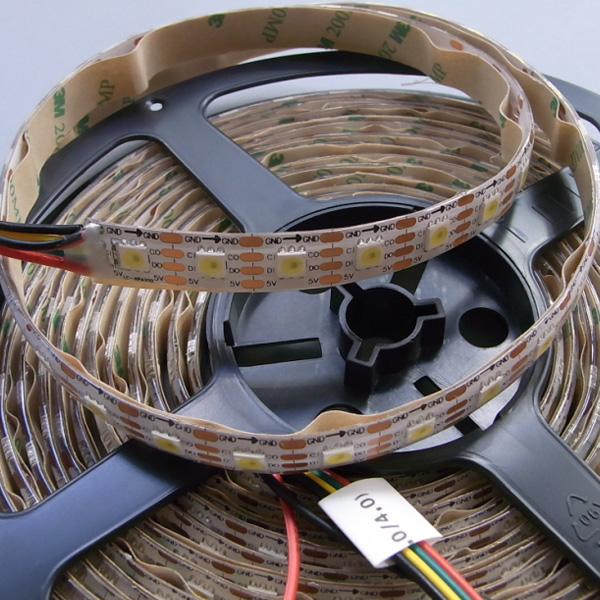

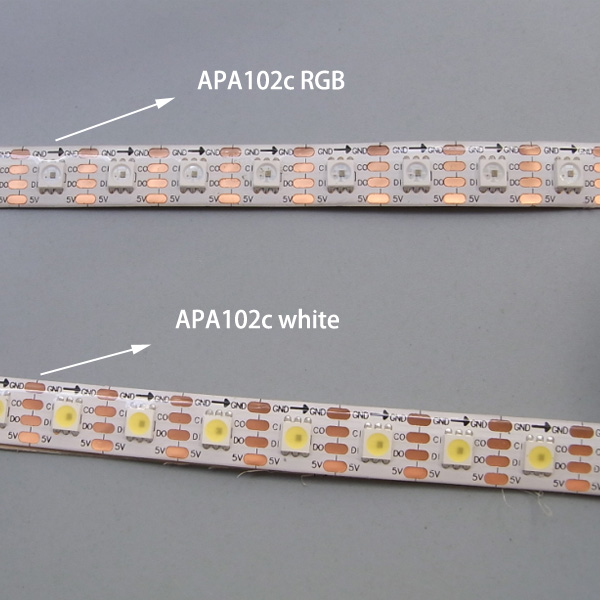

5V 72 pixels white APA102c digital led strip

Mode: BW5050W72T-102c

Overview

This is a new intelligent pixel LED strips with separate signal wires CLK and DATA, more quicker than ws2812b.

Parameter:

1. Working Volt.: DC5v, MAX 22 watt/meter

2. 72 LEDs/m, 72 pixels/m

3. SMD5050 White(3200K/6000K), Epistar chips

4. APA102c chipset, built into the 5050 lamp

5. FPCB wdith= 12mm

6. wires out:
  DC5v
  CLK
    DATA
GND

Protection and mode:

IP rating	Protection	Outer Size	Installation	Mode
IP40	None	L5000*W12	Double side tape	BW505050W72T-102c
IP65	Glue coating	L5000*W12	Double side tape	DW5050W72T-102c
IP67	Silicone tube	L5000*W14	screw + buckle	TW5050W72T-102c
IP68	Tube +glue filled	L5000*W14	screw + buckle	ZW5050W72T-102c

Specification: http://www.pixel-leds.com/pdf/2014-7-14-7-43-59.pdf

How to place an order?

1) Send me an enquiry,with quantity/items.

2) We make proforma invoice for you.

3) Checking and corfirm the invoice.

4) After payment , all goods will be sent to you in 2-3 days as usual.

5) OEM/ODM is welcomed.
