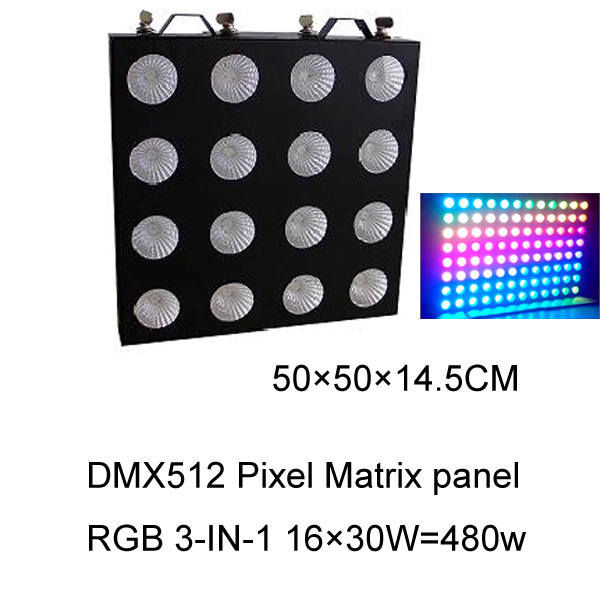

16 pixel RGB 480w DMX512 LED matrix panel
Product Description:
16 pixel RGB 480w DMX512 LED matrix panel
MT-DMX-4-4-480W
MT-DMX-4-4-480W
Overview
High power DMX512 LED Matrix panel, RGB full color emitting, 16pcs of 30W high power LED lamp, can be controlled by console OR software(Freestyler / Madrix).
Parameter
1. Input Voltage: AC110V-240V, 50-60Hz
2. LED QTY: 16pcs of full color RGB
3. Power consumption: 16×30watt = 480watts
4. Pixel QTY: 16 pixels
5. DMX channels:
8 channel when controlled by DMX console
48 channels when controlled by software
6. Input signal: DMX512
7. Beam Angle: 45
8. Playing modes: Fading / Sound reactive / master-slave / 16 programs
9. Fan cooling (intelligent temperature-current control system)
8 channel when controlled by DMX console
48 channels when controlled by software
6. Input signal: DMX512
7. Beam Angle: 45
8. Playing modes: Fading / Sound reactive / master-slave / 16 programs
9. Fan cooling (intelligent temperature-current control system)
10. Lifespan: 50,000 to 100,000 hours
11. Size: 50 × 50 ×14.5CM
Widely used for stage lighting and decoration.
