Overview

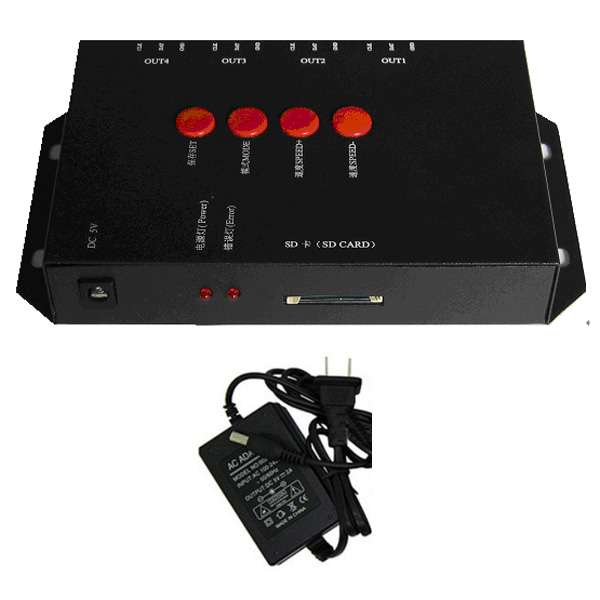

T-4000s is a SD card programmable LED controller, it can control MAX 4096 pixels, and support almost all kinds of IC, such as ws2801, lpd8806, ws2811, ws2812, ws2812b, ucs1903, TM1803, tm1809, DMX512, etc. Controlling LEDs by programs which stored in the SD card, programmed by software of ledEdit.
|
IC type |
LedEdit file |
Pixel QTY |
|
|
TM1803,TM1804,TM1809,TM1812 |
T-4000-TM1803 |
4096 pixels |
High / lower speed |
|
TM1829 |
T-4000-TM1829 |
4096 pixels |
High / lower speed |
|
UCS1903,UCS1903B ,UCS1909，UCS1912 |
T-4000-UCS1903 |
4096 pixels |
High / lower speed |
|
UCS2903,UCS2909,UCS2912, |
T-4000-UCS2903 |
4096 pixels |
High / lower speed |
|
UCS3903 |
T-4000-UCS1024 |
4096 pixels |
|
|
UCS6909，UCS6912，UCS7009，UCS5903 |
T-4000-UCS6909 |
4096 pixels |
|
|
TA9909 |
T-4000-TA9909 |
4096 pixels |
High / lower speed |
|
MBI6021 |
T-4000-MBI6021 |
4096 pixels |
|
|
WS2811 |
T-4000-WS2811 |
4096 pixels |
High / lower speed |
|
INK1003 |
T-4000-INK1003 |
4096 pixels |
High / lower speed |
|
TLS3100 |
T-4000-TLS3100 |
4096 pixels |
High / lower speed |
|
SM16711 |
T-4000-SM16711 |
4096 pixels |
High / lower speed |
|
SM16716 |
T-4000-SM16716 |
4096 pixels |
|
|
SM16726 |
T-4000-SM16726 |
4096 pixels |
|
|
LPD6803,D705,1101 |
T-4000-6803 |
4096 pixels |
|
|
LPD8806,LPD8809 |
T-4000-8806 |
4096 pixels |
|
|
LPD1882,LPD1889 |
T-4000-1882 |
4096 pixels |
High / lower speed |
|
LPD6812 |
T-4000-6812 |
4096 pixels |
High / lower speed |
|
LPD6813 |
T-4000-6813 |
4096 pixels |
|
|
P9813 |
T-4000-P9813 |
4096 pixels |
|
|
TM1903，TM1904，TM1909，TM1912 |
T-4000-TM1903 |
4096 pixels |
High / lower speed |
|
WS2801,WS2803 |
T-4000-WS2801 |
4096 pixels |
|
|
DS189 |
T-4000-DS189 |
4096 pixels |
|
|
TLS3001,TLS3008 |
T-4000-TLS3001 |
* |
|
|
APA102 |
T-4000-APA102 |
4096 pixels |
|
|
BS0815 |
T-4000-0815 |
4096 pixels |
|
|
GW6203 |
T-4000-GW6203 |
4096 pixels |
|
|
BS0825 |
T-4000-0825 |
4096 pixels |
|
|
BS0901 |
T-4000-0901 |
4096 pixels |
Features:
1. 32-65536 Gray, Gamma correction processing software;
2. Support the line, matrix and special-shaped modelling;
3. Off-line control, play back content stored in the SD card;
4. T-4000 store a maximum of 16 documents/programs;
Note:
A: T-4000 has 4 output ports, the speed can reach 30fps when 512 pixels/port, and slow down with the pixel QTY adding;
Memory Card:
. Type: SD Card
. Capacity: 128MB-2GB
. File Format: FAT file format
. Store files: *.led
Note:
To copy files to SD card, you must first format to the SD card, pay attention to is that each copy must be formatted before.
SD card must be formatted as "FAT" format.
