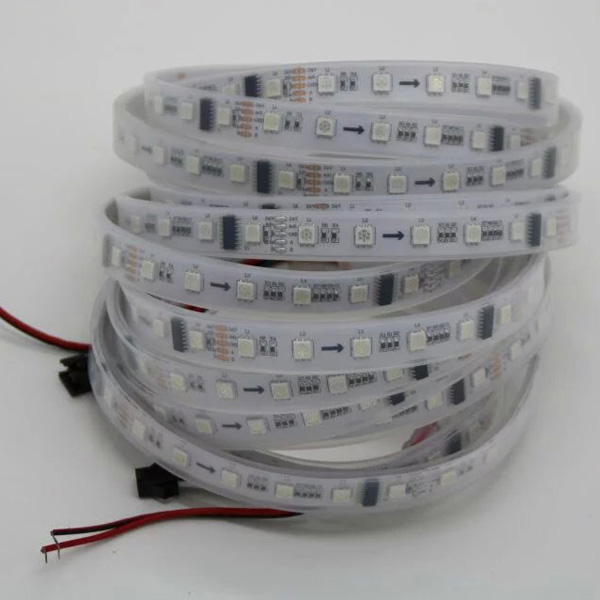

DC24V 60 LED/m TM512 addressable LED tape

Product Description:

DC24V 60 LED/m TM512 addressable LED tape

Mode: BW5050RGB60T-DMX-24v

Overview:
DC24v input pixel addressable DMX512 LED strip, there are 60 × SMD5050 per meter, 10 pixels/meter. Inbuilt RS485 decoder chip(A/B/GND), parallel signal transmission (one broken≠ all broken), original DMX address can be reset by address setter, compatible with DMX512/1990 protocol.

Parameter:

1. DC24v, 14.4watts/meter

2. 60 LEDs/meter, 10 pixels/meter

3. 10 × TM512 chip, 1 IC drives 6 LEDs as 1 segment

4. 30 DMX channels per meter, 1 universe/512CH can drive MAX 17 meters

5. SMD5050 RGB, Epistars chips

6. RS485 interface: A/B/GND

7. 17 meters per universe(512)

IP rating	Protection	Outer Size	Installation	Mode
IP40	None	L5000*W12	Double side tape	BW5050RGB60T-DMX-24v
IP65	Glue coating	L5000*W12	Double side tape	DW5050RGB60T-DMX-24v
IP67	Silicone tube	L5000*W13	screw + buckle	TW5050RGB60T-DMX-24v
IP68	Tube +glue filled	L5000*W13	screw + buckle	JW5050RGB60T-DMX-24v

Advantages:

1. DMX address increase automaticly from 1 to 512/1024/1536

2. DMX address can be reset by address setter at every segme

3. Parallel signal connection design, one broken IC will not affect the whole strip' working.

Each segment takes 3 channels, so 30 channels for 1 meter, like this:
(R1 = R2 = R3)= Channel 1
(G1 = G2 = G3)= Channel 2
(B1 = B2 = B3)= Channel 3

It is widely used for creating LED dispaly, night-club and bars decoration to show text and animation.
