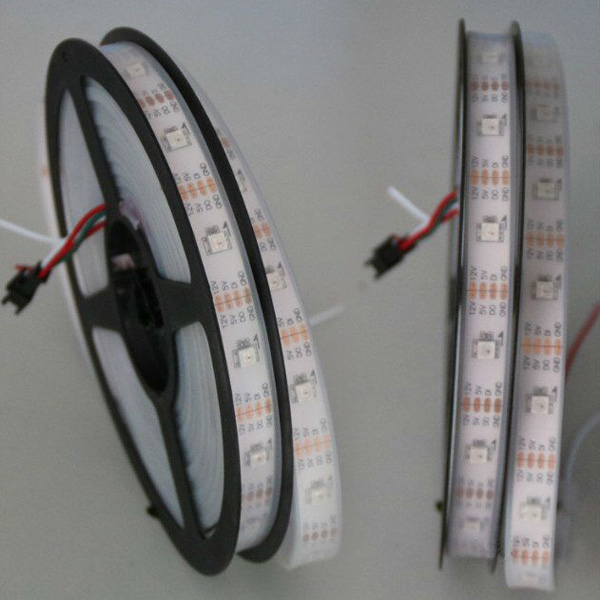

DC12v ws2812b 60 pixel LED tape
Product Description:
DC12v ws2812b 60 pixel LED tape
Overview:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit. It is space and cost saving, widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v/12V, Max 18 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. cables: DC5V, DATA, GND
8. FPCB size: 12MM
Protection and mode:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit. It is space and cost saving, widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v/12V, Max 18 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 60 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. 5meters/roll
7. cables: DC5V, DATA, GND
8. FPCB size: 12MM
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB60T-2812b-12v |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB60T-2812b-12v |
| IP67 | Silicone tube | L5000*W15 | screw + buckle | TW5050RGB60T-2812b-12v |
| IP68 | Tube +glue filled | L5000*W15 | screw + buckle | JW5050RGB60T-2812b-12v |
