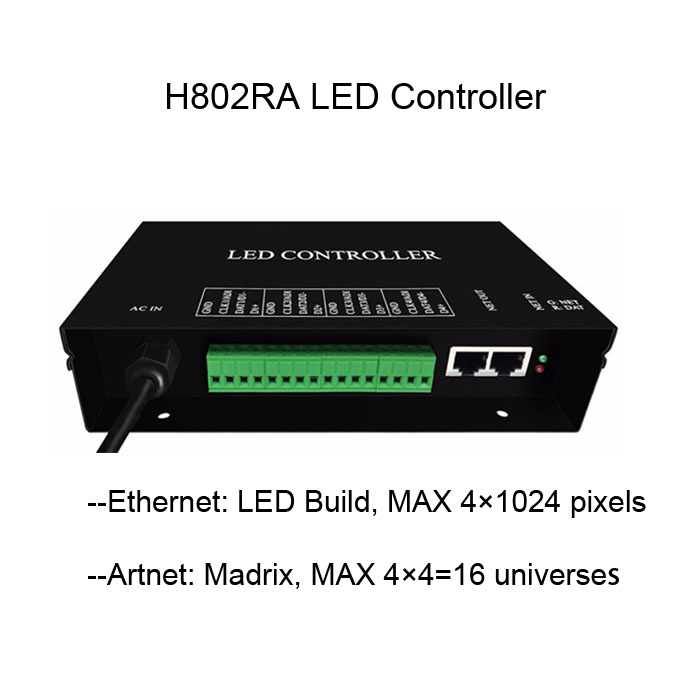

H802RA can be used as slave controller and Ethernet controller:
-- Slave controller: working with software of LED Build, support MAX 4096 pixels;

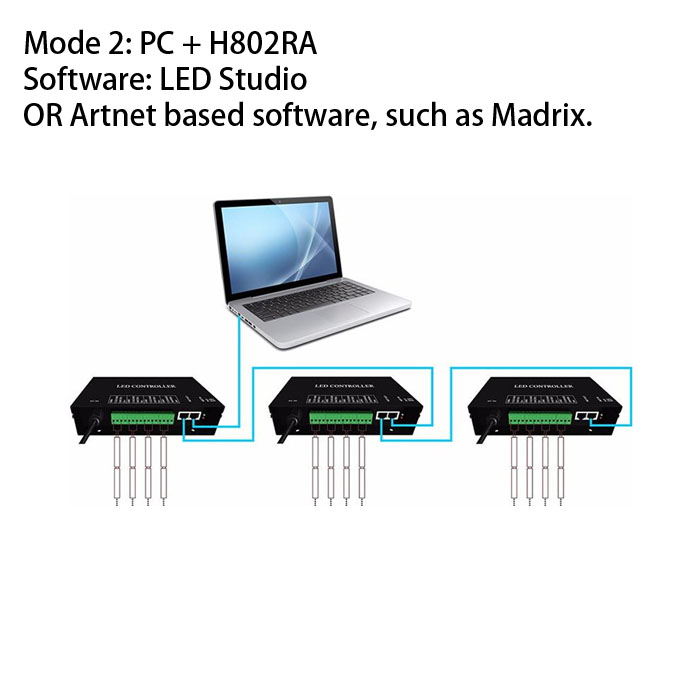

-- Ethernet controller: working with LED Studio or other Art-net based software, such as MADRIX. For Artnet using, it support MAX 16 universes.
1. Features
(1). Four ports control maximum 4096 pixels (for example WS2812). But for DMX512, each port outputs 512 channels.
(2). Support ArtNet protocol, 4 universes(each 512 channels) output when H802RA works with Madrix.
(3). Allocate address for DMX512 chips (for example UCS512, TM512)
(4). Controlled by master controller or PC.
(5). Transmission distance between two controllers is up to 100 meters.Supported Driver Chips
DMX512, HDMX, LPD6803, LPD8806, LPD1882, LPD1889, LPD1883, LPD1886, TM1812, TM1809, TM1804, TM1803, TM512, TM1926, TM1913, TM1914, TM1814, UCS6909, UCS6912, UCS1903, UCS1909, UCS1912, UCS512, UCS8904, APA102, APA104, P9813, WS2801, WS2803, WS2811, WS2812, WS2821, SM16716, SM16711, INK1003, LX1003, MY9221, MBI6021, MBI6024, LD1510, LD1512, LD1530, LD1532,etc.
Note: H802RA supports more than the chips listed above(for example UCS2903 has the same sequence diagram with UCS1903, H802RA supports them all).
H802RA Muanal.
