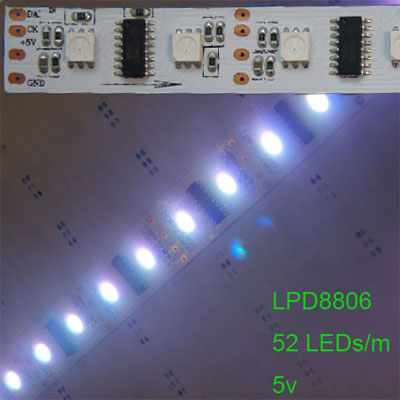

5v 52 LEDs LPD8806 LED strip
Product Description:
LPD8806 52 LEDs/m strip lights
Parameter:
1. DC5v, 15.6w/m
2. 52 LEDs/m, 52 pixels/m
3. 26pcs LPD8806 IC, 1 IC drives 2 LEDs as 1 segment
4. LPD8806 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
2. 52 LEDs/m, 52 pixels/m
3. 26pcs LPD8806 IC, 1 IC drives 2 LEDs as 1 segment
4. LPD8806 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W15 | Double side tape | BW5050RGB52T-8806 |
| IP65 | Glue coating | L5000*W15 | Double side tape | DW5050RGB52T-8806 |
| IP67 | Silicone tube | L5000*W17 | screw + buckle | TW5050RGB52T-8806 |
| IP68 | Tube +glue filled | L5000*W17 | screw + buckle | JW5050RGB52T-8806 |
This LPD8806 strips including 52 LEDs/m, 5meters/roll, each LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.
