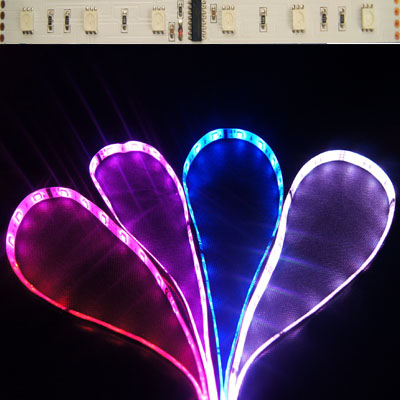

12v 36 LEDs/m LPD8806 LED strip
Product Description:
12V LPD8806 36 LEDs/m strip lights
Parameter:
1. DC12v, 8.64w/m
2. 36 LEDs/m, 12 pixels/m
3. 6pcs LPD8806 IC, 1 IC drives 6 LEDs as a segment
4. LPD8806 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
2. 36 LEDs/m, 12 pixels/m
3. 6pcs LPD8806 IC, 1 IC drives 6 LEDs as a segment
4. LPD8806 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB36T-8806-12V |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB36T-8806-12V |
| IP67 | Silicone tube | L5000*W14 | screw + buckle | TW5050RGB36T-8806-12V |
| IP68 | Tube +glue filled | L5000*W14 | screw + buckle | JW5050RGB36T-8806-12V |
This LPD8806 strips including 36 LEDs/m, 5meters/roll, each 3 LEDs be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.
