12v ws2801 3232 square pixel module lights
12v ws2801 3232 square pixel module lights
Product Description:

12v ws2801 square 3232 pixel module lights
Mode: F3232S5050RGB4T-2801-12V


1. Input DC12v, 1..44watts/pcs

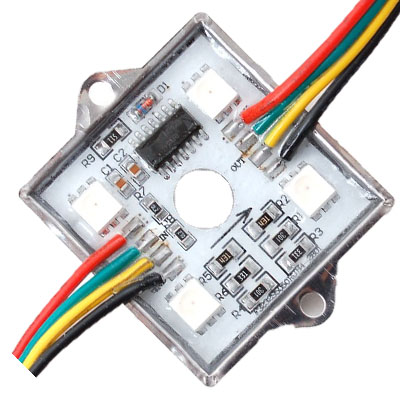

2. 1pcs module is drove by 1pcs ws2801 IC

3. 4 × SMD5050 RGB per module, Epistar chips

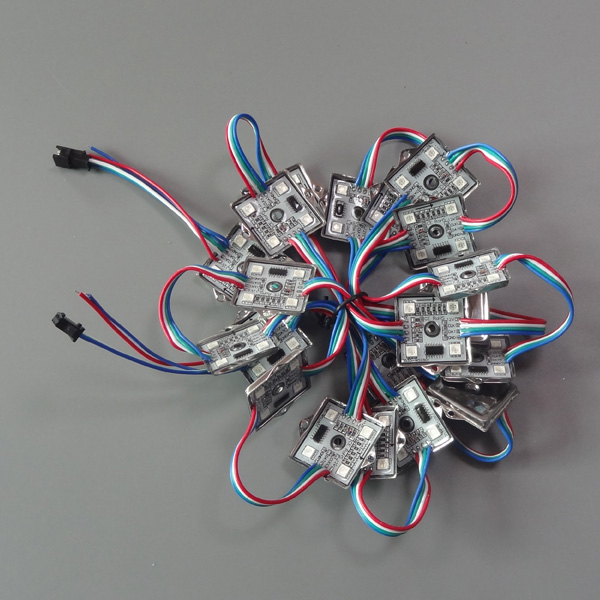

4. 20pcs/string, wire length = 10cm

5. PCB size: 32
× 32mm, housing size 45 × 45mm

6. D3.5mm hole for installation

7. Epoxy coating on PCB, Transparent or Black are available

8. 6 wires out: double
 power wires are brought out separately to make wiring easier.
× DC12v
        2 × GND
        1 × Data
        1 × CLK

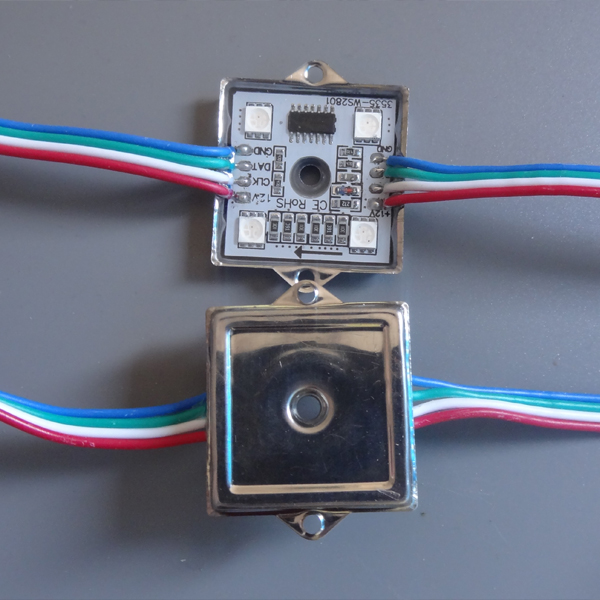

RGB Pixels are digitally-controllable lights you can set to any color, or animate. Each metal 'pixel square' contains 4 RGB LEDs and a controller chip soldered to a PCB--ws2801. Two metal flanges on the side and a 0.15"/3.5mm diameter hole in the middle  to screw them directly onto a surface.
The total max brightness of all LEDs is about 6000-8000mcd.

The pixels are connected by a 4-conductor cable. +12VDC, ground, data and clock. Data is shifted down from one pixel to the next so that you can easily cut the strand or attach more onto the end.

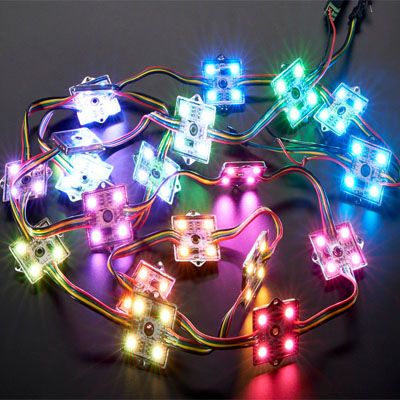

Each dot is digitally controlled, with an internal 8-bit PWM LED driver (24-bit color for 16 million different shades). The pixels must be clocked by a microcontroller.
