5v 32 LEDs/m ws2801 LED strip
Product Description:

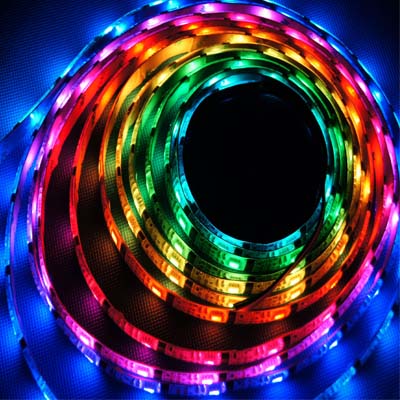

DC5v 32 LEDs/m ws2801 strip lights
Mode: BW5050RGB32T-2801-5V
Mode: BW5050RGB32T-2801-5V
Overview
Including 32 LEDs/m + 32 IC/m, 5meters/roll, each LED is used as a pixel and individually controllable. It can be controlled by Arduino and Rasberry.
It is widely used for creating LED dispaly to show test and animation, and ws2801 is the most popular IC chips because of the fast speed and stable quality.
Parameter:
Including 32 LEDs/m + 32 IC/m, 5meters/roll, each LED is used as a pixel and individually controllable. It can be controlled by Arduino and Rasberry.
It is widely used for creating LED dispaly to show test and animation, and ws2801 is the most popular IC chips because of the fast speed and stable quality.
Parameter:
1. DC5v, 10w/m
2. 32 LEDs/m, 32 pixels/m
3. 32pcs ws2801 IC, 1 ws2801 drives 1 LED as 1 segment
4. ws2801 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. FPCB width: 12MM;
8. Both White and Black background is optional
7. Wires: DC5V, CLK, Data, GND.
2. 32 LEDs/m, 32 pixels/m
3. 32pcs ws2801 IC, 1 ws2801 drives 1 LED as 1 segment
4. ws2801 IC, grey scale= 256/color, 24 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. FPCB width: 12MM;
8. Both White and Black background is optional
7. Wires: DC5V, CLK, Data, GND.
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB32T-2801-5v |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB32T-2801-5v |

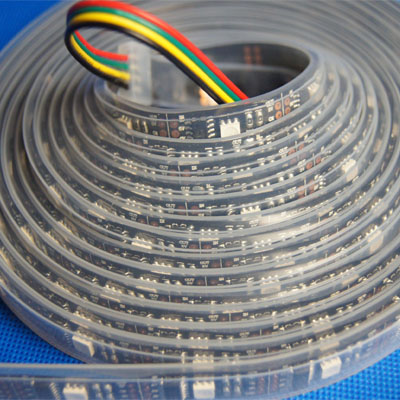

| IP67 | Silicone tube | L5000*W14 | screw + buckle | TW5050RGB32T-2801-5v |
| IP68 | Tube +glue filled | L5000*W14 | screw + buckle | JW5050RGB32T-2801-5v |
