12v 96 LEDs/m ws2801 LED strip
12v 96 LEDs/m ws2801 LED strip
Product Description:

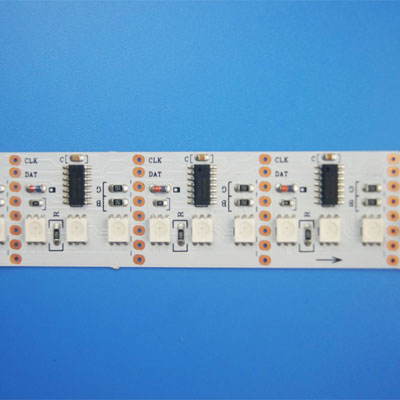

DC12v 96 LEDs/m ws2801 strip lights

Parameter:

1. DC12v, 23w/m

2. 96 LEDs/m, 32 pixels/m

3. 32pcs ws2801 IC, 1 IC drives 3 LEDs as 1 segment

4. ws2801 IC, grey scale= 256/color, 24 bits for RGB

5. SMD5050 RGB, Epistars chips

6. 4-PIN connectors on both ends

7. DC12V, CLK, Data, GND.


IP rating Protection Outer Size Installation Mode
IP40 None L5000*W25 Double side tape BW5050RGB96T-2801-12v
IP65 Glue coating L5000*W25 Double side tape DW5050RGB96T-2801-12v
IP67 --- --- screw + buckle ---
IP68 --- --- screw + buckle ---


This ws2801 pixel strips including 96 LEDs/m, 5meters/roll, each 3 LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.

It is widely used for creating LED Channel letters.
