Black Pearl 5v 32 LEDs/m ws2801 LED strip
Product Description:

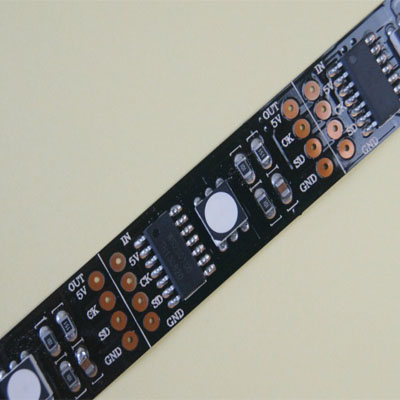

Black Pearl DC5v 32 LEDs/m ws2801 strip lights
Parameter:
1. DC5v, 10w/m
2. 32 LEDs/m, 32 pixels/m
3. 32pcs ws2801 IC, 1 IC drives 1 LEDs as 1 segment
4. ws2801 IC, grey scale= 256/color, 24 bits for RGB
5. Black Pearl SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
This ws2801 pixel strips including 32 LEDs/m, Black Pearl LED lamp, 5meters/roll, each LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.
It is widely used for creating LED dispaly to show text and animation.
2. 32 LEDs/m, 32 pixels/m
3. 32pcs ws2801 IC, 1 IC drives 1 LEDs as 1 segment
4. ws2801 IC, grey scale= 256/color, 24 bits for RGB
5. Black Pearl SMD5050 RGB, Epistars chips
6. 4-PIN connectors on both ends
7. DC5V, CLK, Data, GND.
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB32T-2801-5v-B |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB32T-2801-5v-B |
| IP67 | Silicone tube | L5000*W14 | screw + buckle | TW5050RGB32T-2801-5v-B |
| IP68 | Tube +glue filled | L5000*W14 | screw + buckle | JW5050RGB32T-2801-5v-B |
This ws2801 pixel strips including 32 LEDs/m, Black Pearl LED lamp, 5meters/roll, each LED be used as a pixel and individually controllable. It can be controlled by our SPI controller, Arduino and DMX512 controller via a decoder.
It is widely used for creating LED dispaly to show text and animation.
