DC 5v 60 LEDs/m ws2812b pixels LED strip lights
DC 5v 60 LEDs/m ws2812b pixels LED strip lights
Product Description:

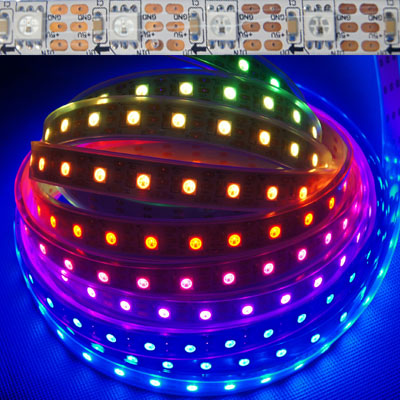

DC 5v 60 pixels/m ws2812b LED strip lights


ws2812 is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit. It is space and cost saving, widely used for creating LED Dispaly to show animation.


1. Input DC5v, Max 18 watts/meter

2. ws2812 IC, 1 LED = 1 pixels

3. 60 LEDs/m, SMD5050 RGB

4. Greyscale=256/color, 24 bits for RGB

5. Both WHITE and Black FPC are optional

6. 5meters/roll

7. cables: DC5V, DATA, GND

Protection and mode:

IP rating Protection Outer Size Installation Mode
IP40 None L5000*W10 Double side tape BW5050RGB60T-2812
IP65 Glue coating L5000*W10 Double side tape DW5050RGB60T-2812
IP67 Silicone tube L5000*W11 screw + buckle TW5050RGB60T-2812
IP68 Tube +glue filled L5000*W11 screw + buckle JW5050RGB60T-2812
