DC5v 96 LEDs/m ws2812b addressable LED strip
Product Description:

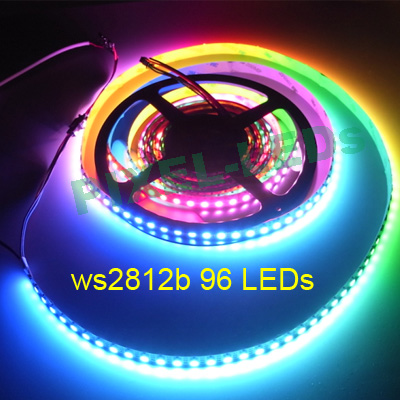

DC5v 96 pixels/m ws2812b LED strip lights
Overview:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit, more space and cost saving. It is widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v, Max 28.8 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 96 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB

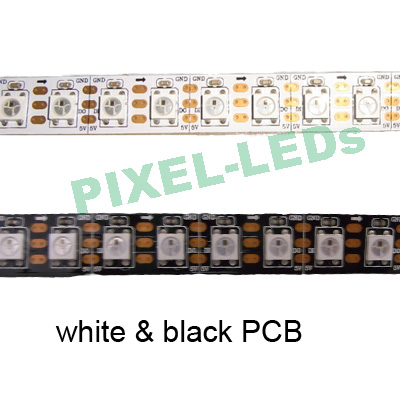

5. Both WHITE and Black FPC are optional
6. FPCB width =12mm
7. 5meters/roll
8. cables: DC5V, DATA, GND
Protection and mode:
ws2812b is the inbuild IC of ws2811, it has the same datasheet with ws2811, but combine IC and SMD5050 as one unit, more space and cost saving. It is widely used for creating LED Dispaly to show animation.
Parameter
1. Input DC5v, Max 28.8 watts/meter
2. ws2812b IC, 1 LED = 1 pixels
3. 96 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. Both WHITE and Black FPC are optional
6. FPCB width =12mm
7. 5meters/roll
8. cables: DC5V, DATA, GND
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB96T-2812b |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB96T-2812b |
| IP67 | Silicone tube | L5000*W13 | screw + buckle | TW5050RGB96T-2812b |
| IP68 | Tube +glue filled | L5000*W13 | screw + buckle | JW5050RGB96T-2812b |
