5-12v 30 LEDs/m TM1809 pixel rgb LED stripe
Product Description:

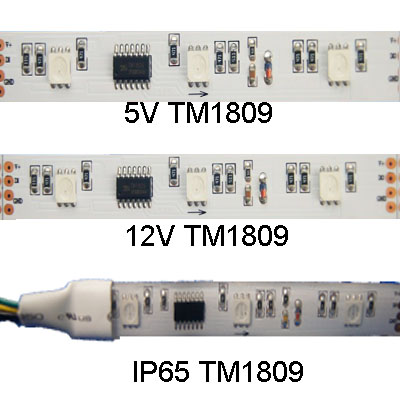

5/12V 30 LEDs/m TM1809 pixel stripe
Overview:
TM1809 is a special IC with 9 channels(3R+3G+3B), so 1 IC chip can control 3 SMD5050 RGB lamps, and each lamp is individually controllable. This type stripe support both DC5v and 12V.
Parameter
1. Input DC5/12v, Max 10 watts/meter
2. TM1809 IC, 1 IC chip drive 3 LEDs as 3 pixels
3. 30 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. white FPC
6. 5meters/roll
7. Cables: DC5V, DATA, GND
Protection and mode:
TM1809 is a special IC with 9 channels(3R+3G+3B), so 1 IC chip can control 3 SMD5050 RGB lamps, and each lamp is individually controllable. This type stripe support both DC5v and 12V.
Parameter
1. Input DC5/12v, Max 10 watts/meter
2. TM1809 IC, 1 IC chip drive 3 LEDs as 3 pixels
3. 30 LEDs/m, SMD5050 RGB
4. Greyscale=256/color, 24 bits for RGB
5. white FPC
6. 5meters/roll
7. Cables: DC5V, DATA, GND
Protection and mode:
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W12 | Double side tape | BW5050RGB30T-1809-5v |
| IP65 | Glue coating | L5000*W12 | Double side tape | DW5050RGB30T-1809-5v |
| IP67 | Silicone tube | L5000*W13 | screw + buckle | TW5050RGB30T-1809-5v |
| IP68 | Tube +glue filled | L5000*W13 | screw + buckle | JW5050RGB30T-1809-5v |
