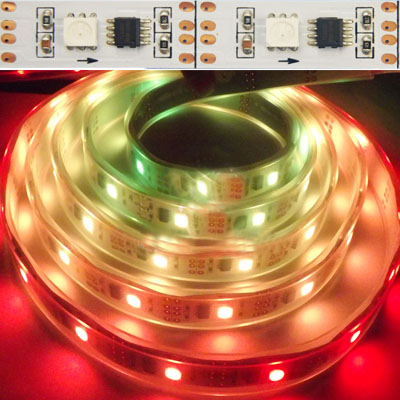

5v 32 leds/m 4096 12bits TLS3001 smart pixel LED strip
Product Description:
5v 32 leds/m 4096-12bits TLS3001 smart pixel LED strip
TLS3001 is a very powerful LED drive IC, the greyscale is up to 4096/color, about 12 bits per color and 36 bits for RGB(a pixel light), so it can realize more coloful effects than those IC which with 256/8bits only.
Parameter:
1. DC5v, 10w/m
2. 32 LEDs/m, 32 pixels/m
3. 32pcs tls3001 IC, 1 IC drives 1 LEDs as 1 segment
4. Grey scale= 4096/color, 36 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 3-PIN connectors on both ends
7. DC5V, Data, GND.
2. 32 LEDs/m, 32 pixels/m
3. 32pcs tls3001 IC, 1 IC drives 1 LEDs as 1 segment
4. Grey scale= 4096/color, 36 bits for RGB
5. SMD5050 RGB, Epistars chips
6. 3-PIN connectors on both ends
7. DC5V, Data, GND.
| IP rating | Protection | Outer Size | Installation | Mode |
| IP40 | None | L5000*W10 | Double side tape | BW5050RGB32T-3001 |
| IP65 | Glue coating | L5000*W10 | Double side tape | DW5050RGB32T-3001 |
| IP67 | Silicone tube | L5000*W11 | screw + buckle | TW5050RGB32T-3001 |
| IP68 | tube and glue filled | L5000*W11 | screw + buckle | JW5050RGB32T-3001 |
