Overview

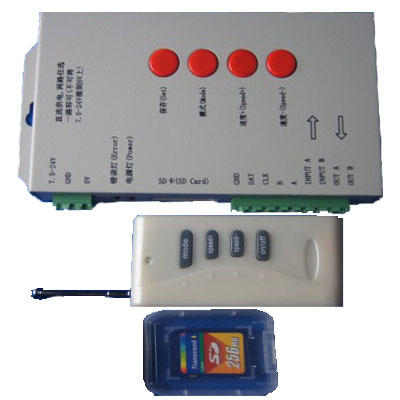

T-1000s is a SD card programmable LED controller, it can control MAX 2048 pixels, support almost all kinds of IC, such as ws2801, lpd8806, ws2811, ws2812, ws2812b, ucs1903, TM1803, tm1809, DMX512, etc.
It work with programs which stored in the SD card, and programms can be made via software of ledEdit2013. We upgrated it a RF remote function, MAX remote distance = 50 meters
Notice:
There are 3 types of T-1000s controller for the moment:
Type 1: T-1000s A. Used for almost regular IC chipset.
Type 2: T-1000S B. Only for tls3001, BS0815, BS0901.
Parameter of controller:
1. Input DC5v, 7.5v-24v
2. Modes / speed adjustable
3. Size: 160*80*30mm
4. MAX support 16 programs in a SD card
5. SD card: 256M

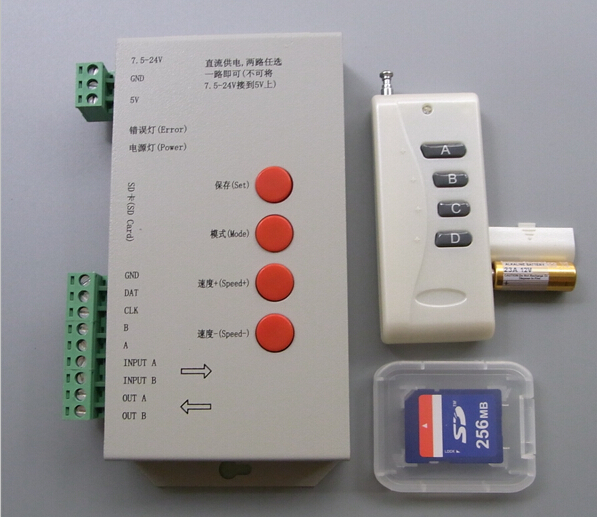

Parameter of remote Panel:
1. The remote panel don't have function of ON/OFF;
2. RF remote control;
3. drove by 1×23A/12V battery;
4. A= useless B= Mode C=Speed+ D=Speed-
|
Support IC type |
Module in Edit software |
Pixel QTY |
Remark |
|
LPD6803, D705, 1101, 6909, 6912 |
T-1000-6803 |
2048 pixel |
|
|
LPD8806, LPD8809 |
T-1000-8806 |
2048 pixel |
|
|
TM1803, TM1804, TM1809, TM1812 |
T-1000-TM |
2048 pixel |
Low / high speed |
|
TM1903, TM1904, TM1909, TM1912 |
T-1000-TM19 |
2048 pixel |
|
|
UCS6909,UCS6912,UCS7009,UCS5903 |
T-1000-UCS-32 |
2048 pixel |
|
|
UCS1903, UCS1909, UCS1912 |
T-1000-UCS-256 |
2048 pixel |
Low / high speed |
|
UCS3903 |
T-1000-UCS-1024 |
2048 pixel |
|
|
DMX512 |
T-1000-DMX |
170/512 pixel |
Compatible DMX512 |
|
WS2801, WS2803 |
T-1000-WS |
2048 pixel |
|
|
WS2811 |
T-1000-WS2811 |
2048 pixel |
Low / high speed |
|
DS189 |
T-1000-DS189 |
2048 pixel |
|
|
TLS3001, TLS3002, TLS3008 |
T-1000-TLS |
* pixel |
|
|
P9813 |
T-1000-P9813 |
2048 pixel |
|
|
SM16715 |
T-1000-SM16715 |
2048 pixel |
Low / high speed |
|
SM16716 |
T-1000-SM16716 |
2048 pixel |
|
|
BS0901, BS0902 |
T-1000-0901 |
2048 pixel |
|
|
BS0815 |
T-1000-0815 |
2048 pixel |
|
| LX1203 | T-1000-1203 | 2048 pixel |
