8192 pixels 8000A SD card LED controller
Product Description:

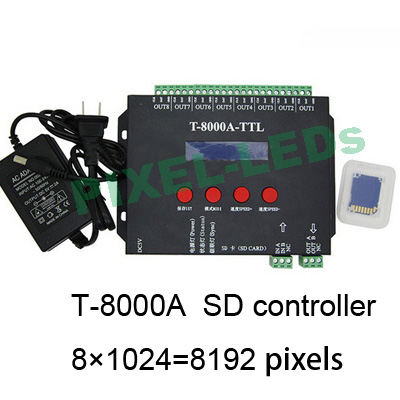

T-8000A SD card 8192 pixels LED controller
Overview
This is a SD card pixel controller, it can control MAX 8192 pixels with 8 output ports, 1024 pixels per port. It supports almost all kinds of IC, such as ws2811, ws2801, ws2812b,etc. Speed and mode can be controlled by DMX512 console via a decoder.
Programs made by software of ledEdit2013, 1pcs of SD card can store MAX 16 programs.
Parameter
1. Input AC110-220v (adaptor)
2. 8 output ports, 1024 pixels per port
3. MAX control 8 *1024 pixels
4. Size: 200 * 170 * 50 mm
5. 1.5KG/pcs
6. Work with software of ledEdit2013
7.LCD display to show information
T-8000A SD controller PDF manual specification: http://www.pixel-leds.com/pdf/20_0.pdf
Click To Buy

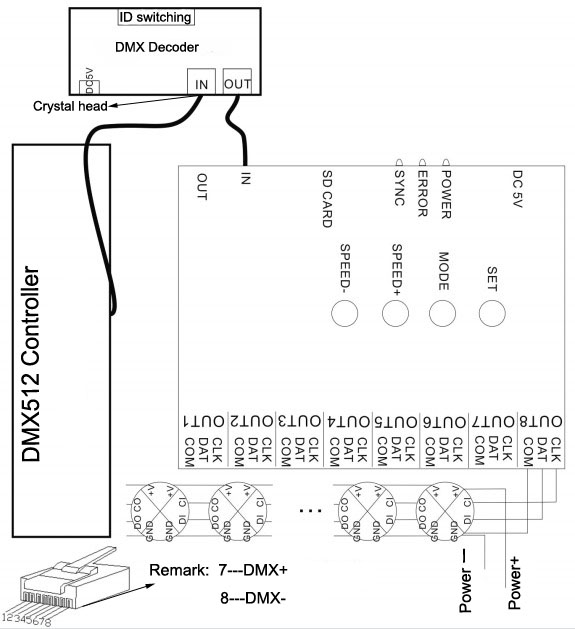

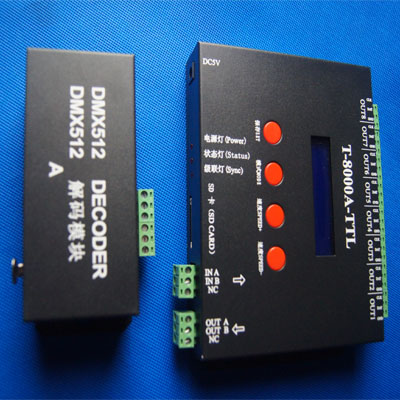

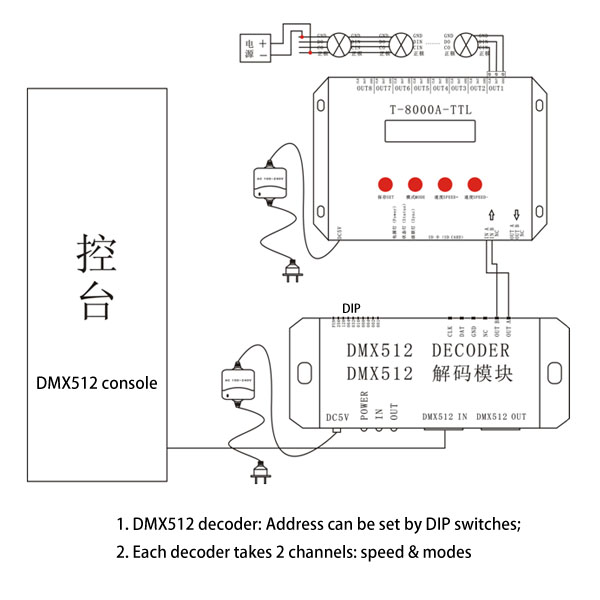

Expanding function: controlled by DMX512 console via a decoder.
