501 Art-Net MADRIX Ethernet LED controller
Product Description:

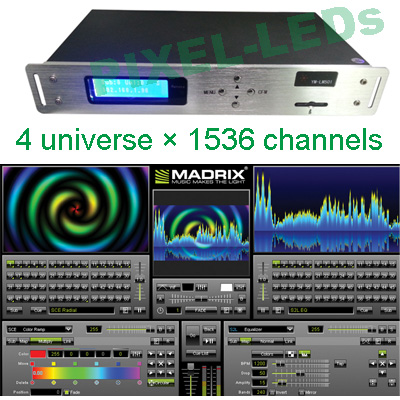

501 Art-Net MADRIX Ethernet / SD LED controller
Overview
501 is a Ethernet Pixel LED controller, It support both Art-net(DMX) and SPI protocol, compatible with MADRIX (Art-net protocol) and vison software(SPI).
Protocol:
1. Art-net protocol: Art-net IN and DMX512 OUT
There are 4 universe available (about 4 × 512 channels) when work with Art-net protocol (MADRIX). For Enhanced version: 4 universe and 1024/1536CH per universe!! So total 4 × 1536=6144 channels per controller!!
Slave controllers under Art-net: SVE4X512
when Output=1 univ (512 CH), support MAX 11pcs of slave controller, total 12 ×4 universe;
when Output=2 univ (1024CH), support MAX 5pcs of slave controller, total 6 ×4 ×2 universe;
when Output=3 univ (1536CH), support MAX 3pcs of slave controller, total 4 ×4 ×3 universe.
2. SPI protocol: Net cable IN and SPI output
4 output ports and 512 RGB pixels for each port, frame ≥30FPS.
Slave controllers under SPI:
Support MAX 31pcs of slave controller, total 32 * 4 * 512 = 65536 pixels (RGB)
Parameter
1. Size: 260 * 154 * 45mm ,1.1 KG
2. Input AC110-220v
3. It support on-line / off-line control modes
4. 4 outputs, each output can drive 512 pixels(channels)
5. LCD display
6. Language: Chinese / English.
Click To Buy
More information? To download the manual at: LM501 LED controller Manual
Advantages:
1. It combine the functions of:
--- Art-net to DMX512
--- Art-net to SPI (LPD6803/ws2811/ws2801/TM**)
--- Ethernet on-line control
--- SD card off-line control
2. Advanced function:
Each output can export 512 / 1024 / 1536 channels
3. Compatible with MADRIX
2. SPI protocol: Net cable IN and SPI output
4 output ports and 512 RGB pixels for each port, frame ≥30FPS.
Slave controllers under SPI:
Support MAX 31pcs of slave controller, total 32 * 4 * 512 = 65536 pixels (RGB)
1. Size: 260 * 154 * 45mm ,1.1 KG
2. Input AC110-220v
3. It support on-line / off-line control modes
4. 4 outputs, each output can drive 512 pixels(channels)
5. LCD display
6. Language: Chinese / English.
Click To Buy
More information? To download the manual at: LM501 LED controller Manual
Advantages:
1. It combine the functions of:
--- Art-net to DMX512
--- Art-net to SPI (LPD6803/ws2811/ws2801/TM**)
--- Ethernet on-line control
--- SD card off-line control
2. Advanced function:
Each output can export 512 / 1024 / 1536 channels
3. Compatible with MADRIX
