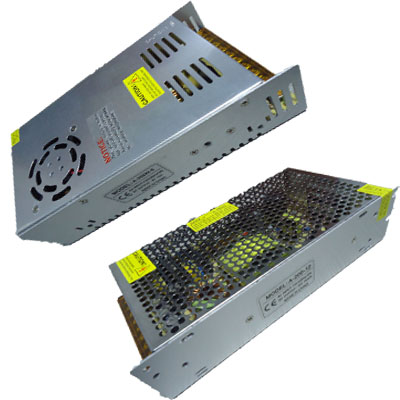

12v output 60-400w Aluminum case switch power supply
Product Description:
12v output 60-400w Aluminum case switch power supply
Input: AC 110- 240v
Output: DC12v
Power: 60-400watts
Notice:
1. These Power Supply without PLUG
2. There is no cooling fan below 200watt
3. To achieve a longer lifespan both for the power supply and LEDs, we strongly suggest a extra 20% more power than theoretical value, such as 240w Power supply for LEDs--200watts.
240watts = 200w*1.2
| Mode | Input Voltage | Output Voltage | Output Current | Power | Size&Weight | ||||
| P60W-12V | AC100-240V | DC12V | 5A | 60W | 110*78*35mm | ||||
| P100W-12V | AC100-240V | DC12V | 8.5A | 100W | 199*98*42mm | ||||
| P150W-12V | AC100-240V | DC12V | 12.5A | 150W | 199*98*38mm | ||||
| P200W-12V | AC100-240V | DC12V | 16.5A | 200W | 199*98*38mm | ||||
| P240W-12V | AC100-240V | DC12V | 20A | 240W | 200*111*49mm | ||||
| P300W-12V | AC100-240V | DC12V | 25A | 300W | 200*111*49mm | ||||
| P400W-12V | AC100-240V | DC12V | 33A | 400W | 215*115*50mm |
