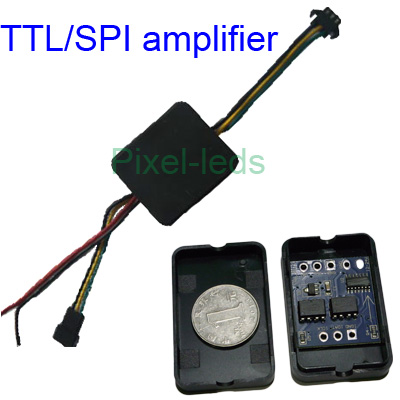

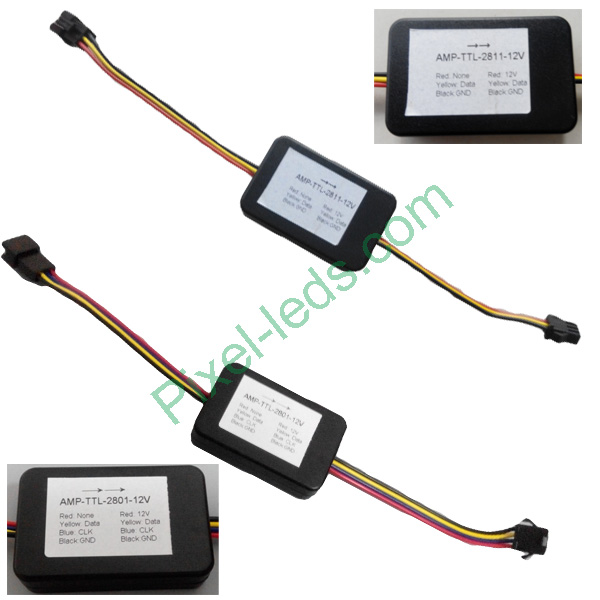

TTL/SPI signal amplifier for ws2811 ws2801
Product Description:
TTL/SPI signal amplifier for ws2811 ws2801
Overview
This TTL/SPI signal amplifier used to receive and enlarge signal after long distance transmission, to make sure the whole system work correct.
Parameter
1. Input voltage: DC5v / 12v
2. Available distance: within 300 meters
3. Support IC: ws2811, ws2801, ws2812b, LPD8806, LPD6803, TM1803/TM1804/TM1809,etc;
4. Support controller: 1000s / 8000A / 300K and any controller with TTL signal output;
5. How to connect:
TTL controller output→→-cables(300meters)→→Amplifier→(cables no more than 5 meters)→Pixel LED strips
Specification:
http://www.pixel-leds.com/pdf/2014-9-1-3-1-16.pdf
This TTL/SPI signal amplifier used to receive and enlarge signal after long distance transmission, to make sure the whole system work correct.
Parameter
1. Input voltage: DC5v / 12v
2. Available distance: within 300 meters
3. Support IC: ws2811, ws2801, ws2812b, LPD8806, LPD6803, TM1803/TM1804/TM1809,etc;
4. Support controller: 1000s / 8000A / 300K and any controller with TTL signal output;
5. How to connect:
TTL controller output→→-cables(300meters)→→Amplifier→(cables no more than 5 meters)→Pixel LED strips
Specification:
http://www.pixel-leds.com/pdf/2014-9-1-3-1-16.pdf
