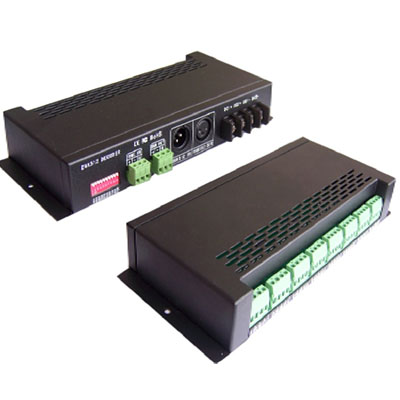

DMX-PWM RGB decoder 24 channels 3A 12-24v
Product Description:
24 channels 3A 12-24v DMX PWM RGB decoder
Overview
This PWM DMX decoder main for PWM RGB LED strips and RGB modules. There are total 8 outputs ports, R,G,B,V for each port. 1pcs of decoder takes 24 DMX512 channels/address, you can set the original address via the DIP switches.
It support standard DMX512/1990 protocol
Parameter
1. Input voltage: DC12 - 24v
2. Current: 3A/channels,
3. Power: 12v-864watt, 24v-1728watts
4. 10 DIP witches, 10th for testing function
5. Greyscale: 256
6. Size: L270×W115×H45mm
Specification at: https://app.box.com/s/4gzexzue8p2zovv23ltg
