5v 12mm ws2801 rgb pixel LED string
Product Description:

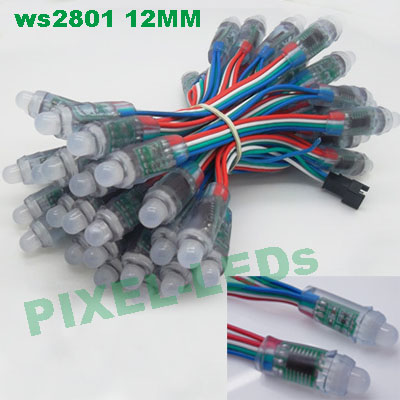

5v 12mm ws2801 rgb pixel string lights
Mode: S67-ws2801-5V
Mode: S67-ws2801-5V
Addressable RGB Pixel string light, 1 IC chip(ws2801) drives 1pcs F8 RGB LED, each LED are individually controllable. Full color changing to show text and animation. Punching diameter: 12MM.
Parameter
1. Input DC5v / 12v
2. Power: 5v = 0.3w/pcs, 12v = 0.72w/pcs
3. Drive IC: ws2801
4. Greyscale: 256/color, 24 bits for RGB
5. wires out: DATA, CKL, GND, Vcc+
6. Packaging: 50pcs/string
7. Wires length: 10CM

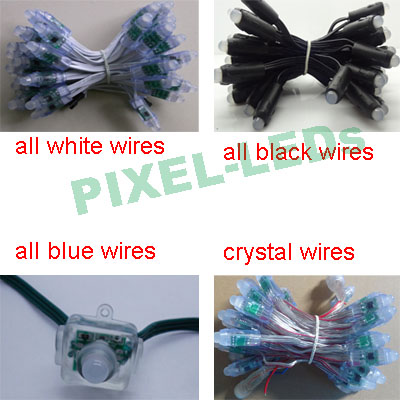

8. Wire color: Red+white+green+blue, all white, all black, all green.
Application
1. Holiday decoration

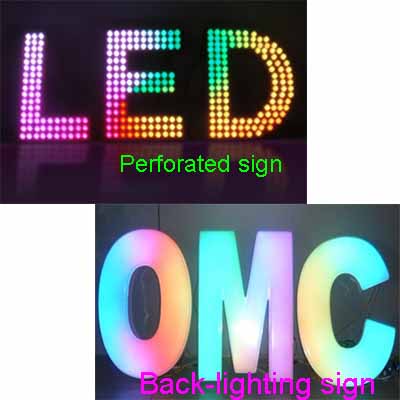

2. LED sign making
