DMX512 Parallel signal rgb pixel string
DMX512 Parallel signal rgb pixel string
Product Description:

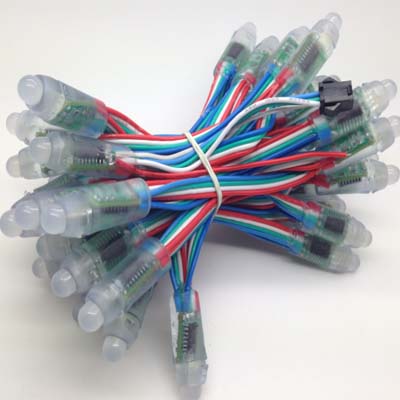

DC5v DMX512 Parallel signal rgb pixel string

Mode: S12F67-DMX-5V

DMX512 addressable full color Pixel string light, each LED are individually controllable.

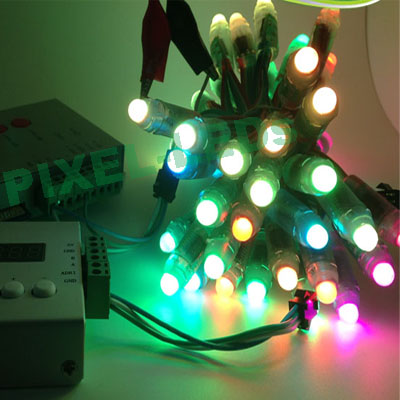

It can be controlled by DMX512 controller directly, support DMX512/1990 protocol. Each pixel lights take 3 DMX512 channels, you can also reset the DMX address with address setter.

Matched address writer:

Parallel signal design!


1. Input DC5v;

2. Power: 5v = 0.3w/pcs, 12v = 0.72/pcs;

3. Drive IC: DMX512;

4. Greyscale: 256/color, 24 bits for RGB;

5. wires out: ADR, DATA, DC5V, GND;

6. packaing: 50pcs/string;

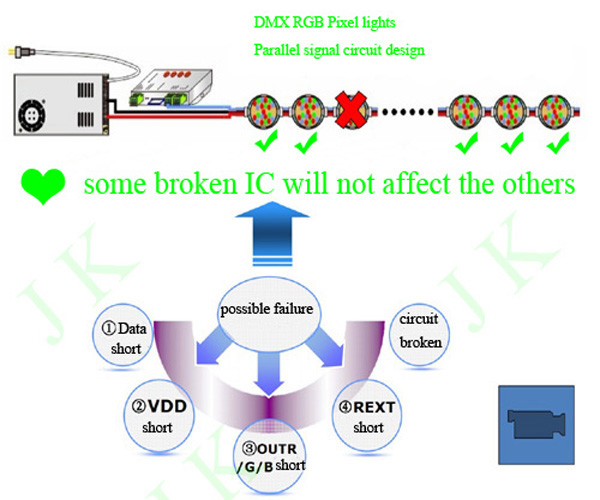

Signal cable connected in Parallel, one broken IC(LED) will not implicate the rest, that mean one failure ≠ whole failure.
