24v D55 6 LEDs DMX addressable RGB pixel modules
24v D55 6 LEDs DMX addressable RGB pixel modules
Product Description:

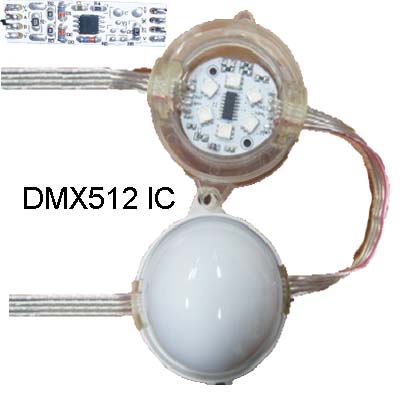

24v D55 6 LEDs DMX addressable RGB pixel modules
DMX512 addressable pixel LED Modules, drove by DMX512 IC, support DMX512/1990 protocol, can be controlled by Madrix, sunlite, freestyler. Each piece of module takes 3 DMX channels, and individually controllable. You can set the DMX address at your request.


1. Input DC24, 1.44 watts/pcs

2. IC chip: DMX512

3. 6 × SMD5050 RGB. Epistar chips

4. Housing size: D55 * H35mm

5. Housing color: Transparent & Milky

6. Cables out: A, B, GND, Vcc+

7. Packaging: 20pcs/string or at your request.


1. Parallel signal circuit, all LED works completely separately. (one broken IC(LED) will affect the others)

2. Support DMX512/1990 protocol.

How to use

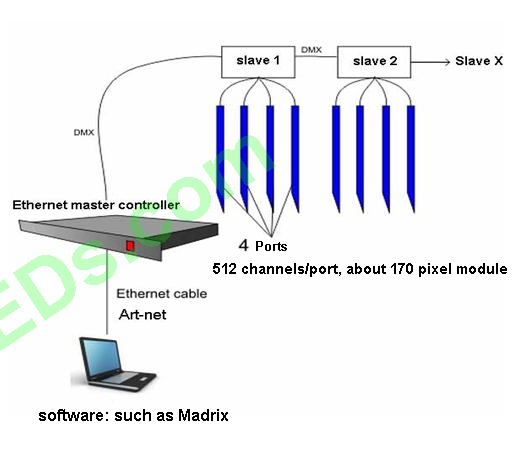

You need to set the DMX address by the address setter before using, then add a tracking PCB before connect to the DMX controller. Like this

DMX512 controller →→ tracking FCB →→ DMX pixel module lights
